Administering Avaya Aura® Device Services
Configuring attribute mapping on OKTA
About this task
To authenticate a user, OKTA sends an authentication response to Keycloak containing various user attributes, such as the first name, last name, phone number, or email address. Keycloak then maps this user information to the attributes of the access token that is generated and sent back to clients. Use this procedure to specify Keycloak attribute names on OKTA.
Procedure
- On the Attributes page, click Add Attribute and add three new attributes with the following parameters:
Display Name
Variable Name
Data Type
Attribute Type
email
email
string
Custom
firstName
firstName
string
Custom
lastName
lastName
string
Custom
For other settings, leave default values.

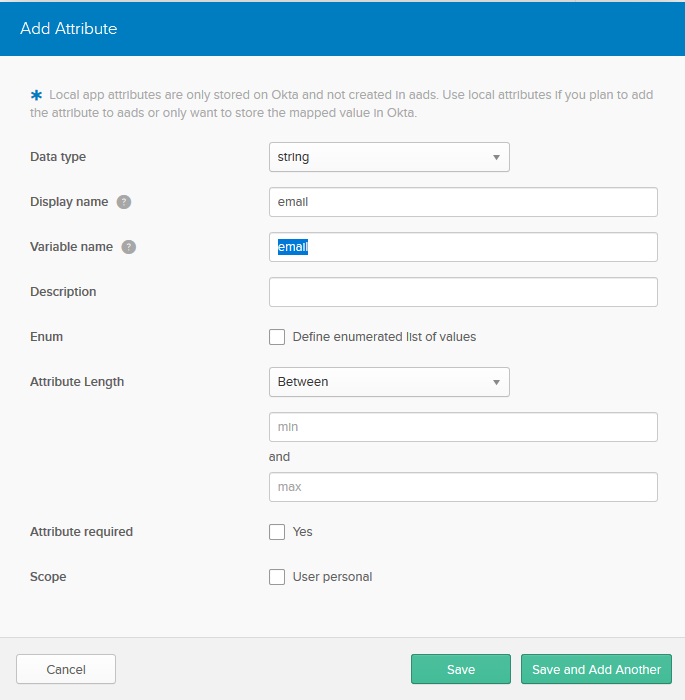

The following image displays the configured email attribute:
- Navigate to the <Your application name> to OKTA User tab and then configure mapping as follows:
Table 1: <Your Application Name> User Profile
OKTA User Profile
appuser.firstName
firstName
appuser.lastName
lastName
appuser.email
email

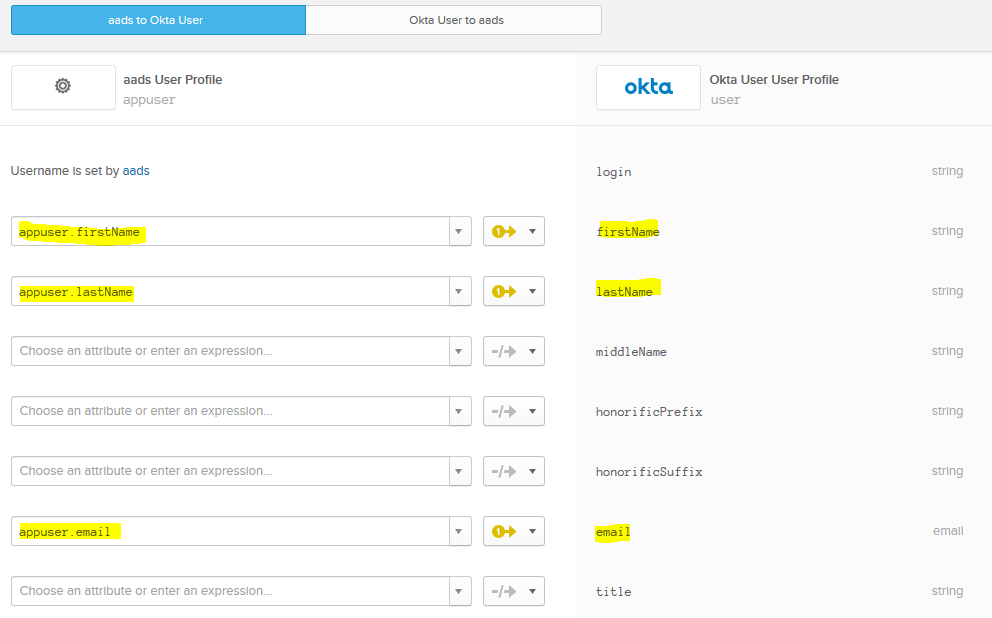

The following image displays the configured attributes:
- Navigate to the OKTA User to <your application name> tab and then configure mapping as follows:
Table 2: OKTA User Profile
<Your application name> User Profile
user.email
email
user.firstName
firstName
user.lastName
lastName

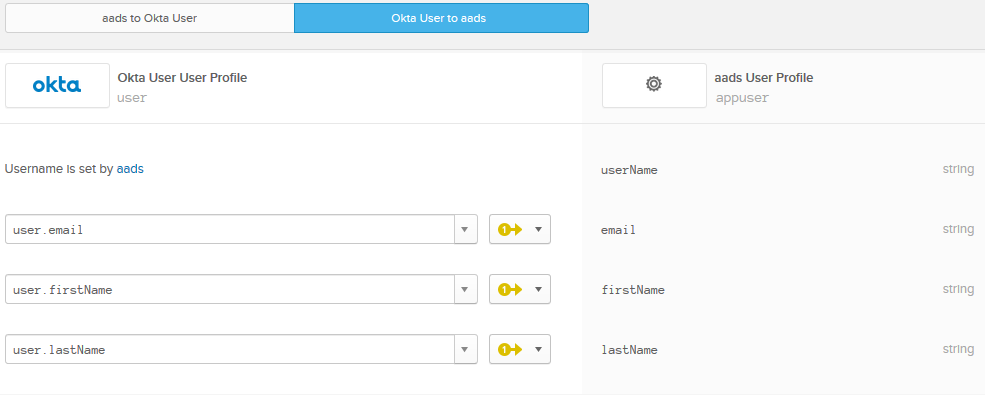

The following image displays the configured attributes:
- In the Attribute Statements area, add attribute statements as follows:
Name
Name format
Value
email
Unspecified
user.email
firstName
Unspecified
user.firstName
lastName
Unspecified
user.lastName

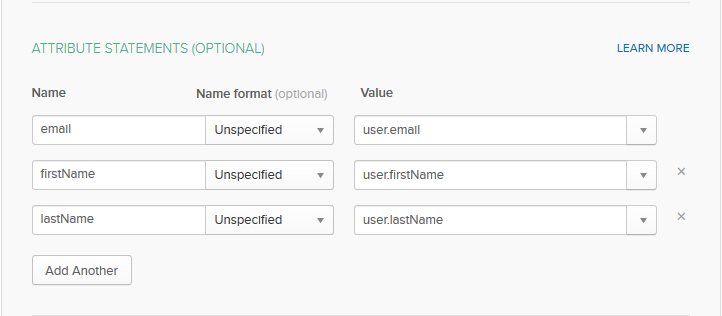

The following image displays the configured attributes:
- In the Group Attribute Statements area, add group attribute statements as follows:
Name
Name format
Filter
Value
Admin
Unspecified
Equals
The name of the administrator group configured on OKTA.
User
Unspecified
Equals
The name of the user group configured on OKTA.

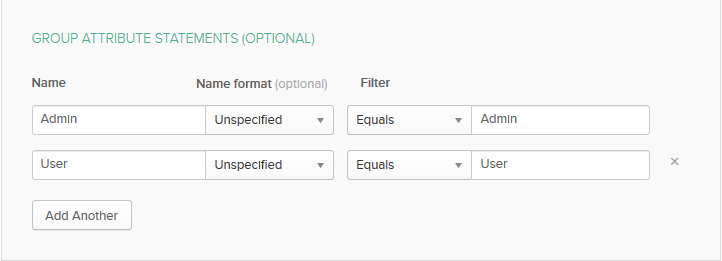

The following image displays the configured attributes:
