Publishing COMM_ADDR_HANDLE values on Avaya Aura Device Services

Last Updated : Jul 09, 2020 |

Procedure

  1. On the Avaya Aura® Device Services web administration portal, click Dynamic Configuration > Configuration.
  2. On the Configuration page, click the Group tab.
  3. In the COMM_ADDR_HANDLE_TYPE field, click Avaya SIP.
  4. In the COMM_ADDR_HANDLE_LENGTH field, enter the number of digits in the extension number of the SIP agent.
  5. Click Publish.

    The portal displays the Publish/Delete Settings dialog box.

  6. Select the Group settings will be applied to group check box.
  7. In the text box, type the first five characters of the LDAP group that contains the agents.
  8. In the drop-down list, click the group.
  9. Click Publish.
  10. Click Yes.
  11. To verify whether the values are published, do the following:
    1. In your web browser, enter the following URL:

      https://<Avaya Aura Device Services_FQDN>:8443/acs/resources/configurations

    2. On the prompt, enter the login credentials of the LDAP user who is a part of the LDAP user group.
    3. Verify the output.

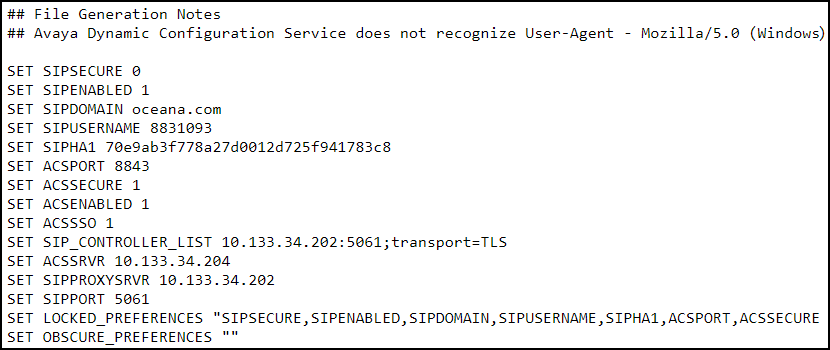

      The following is an example of the output:
