Configuring a vector for the Callback VDN

Last Updated : May 20, 2019 |

About this task

Use this procedure to configure a vector for the Callback VDN.

Using SSH client, connect to the Communication Manager System Access Terminal (SAT) interface.
Run change vector n.

n is the number that you entered in the Destination field of the VECTOR DIRECTORY NUMBER screen while creating the Callback VDN. In this example, the vector number is 9.
On page 1 of the CALL VECTOR screen, perform the following steps:
1. In the Name field, enter the name of the vector as Callback Vector.

  This standard name makes maintenance and troubleshooting easier.

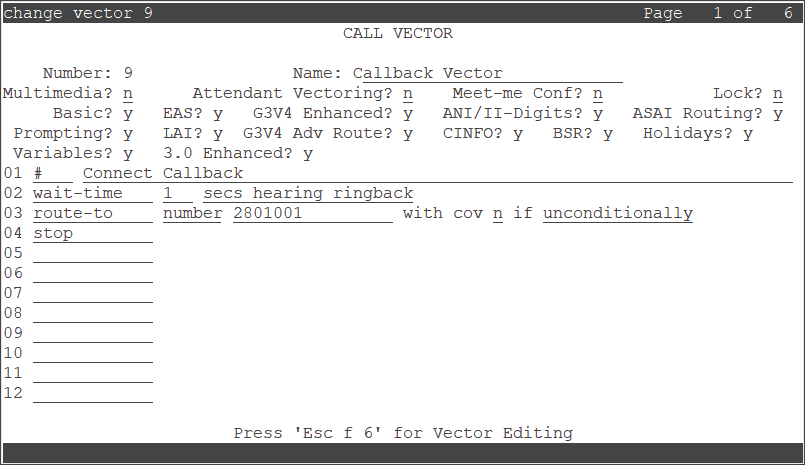

2. Enter the details required from line 01 to line 04 as shown below:

  In this example, 2801001 is the number that you previously configured for OceanaCallback in Experience Portal applications.
Save the settings.
