Configuring a vector for the No Media Treatment VDN

Last Updated : May 20, 2019 |

About this task

Use this procedure to configure a vector for the No Media Treatment VDN.

Procedure

  1. Using SSH client, connect to the Communication Manager System Access Terminal (SAT) interface.
  2. Run change vector n.

    n is the number that you entered in the Destination field of the VECTOR DIRECTORY NUMBER screen while creating the No Media Treatment VDN. In this example, the vector number is 14.

  3. On page 1 of the CALL VECTOR screen, perform the following steps:
    1. In the Name field, enter the name of the vector as NoMedia Vector.

      This standard name makes maintenance and troubleshooting easier.

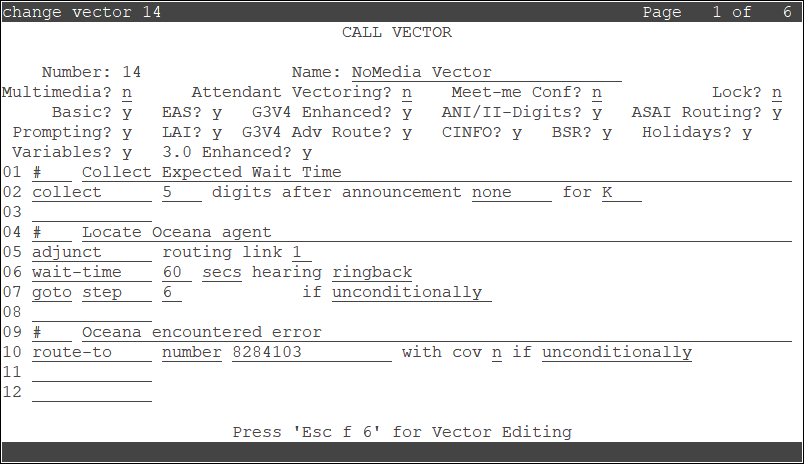

    2. Enter the details required from line 01 to line 10 as shown below:




  4. Save the settings.
