Configuring a vector for the Survey VDN

Last Updated : Jun 20, 2019 |

About this task

Use this procedure to configure a vector for the Survey VDN.

Procedure

  1. Using SSH client, connect to the Communication Manager System Access Terminal (SAT) interface.
  2. Run change vector n.

    n is the number that you entered in the Destination field of the VECTOR DIRECTORY NUMBER screen while creating the Survey VDN. In this example, the vector number is 4.

  3. On page 1 of the CALL VECTOR screen, perform the following steps:
    1. In the Name field, enter the name of the vector as Survey Vector.

      This standard name makes maintenance and troubleshooting easier.

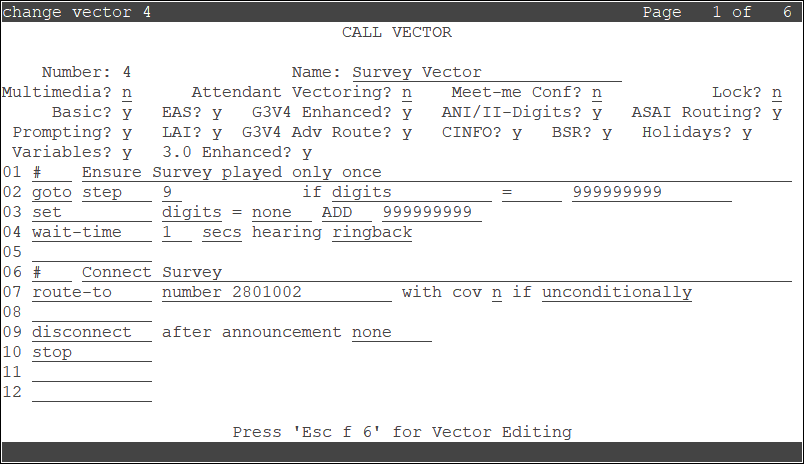

    2. Enter the details required from line 01 to line 10 as shown below:




      In this example, 2801002 is the number that you previously configured in the OceanaSurvey application in Experience Portal.

  4. Save the settings.
