Configuring the Return Destination parameter on the Routing vector

Last Updated : Jun 21, 2019 |

About this task

Use this procedure to configure the Return Destination parameter on the Routing vector.

Procedure

  1. Using SSH client, connect to the Communication Manager System Access Terminal (SAT) interface.
  2. Run change vdn n.

    n is the number that you entered in the Destination field of the VECTOR DIRECTORY NUMBER screen while creating the Routing VDN.

  3. On page 2 of the VECTOR DIRECTORY NUMBER screen, do the following:
    1. In the Call Origin field, type both.
    2. In the Return Destination field, enter the Survey VDN. This example uses 8284107.
  4. Save the settings.

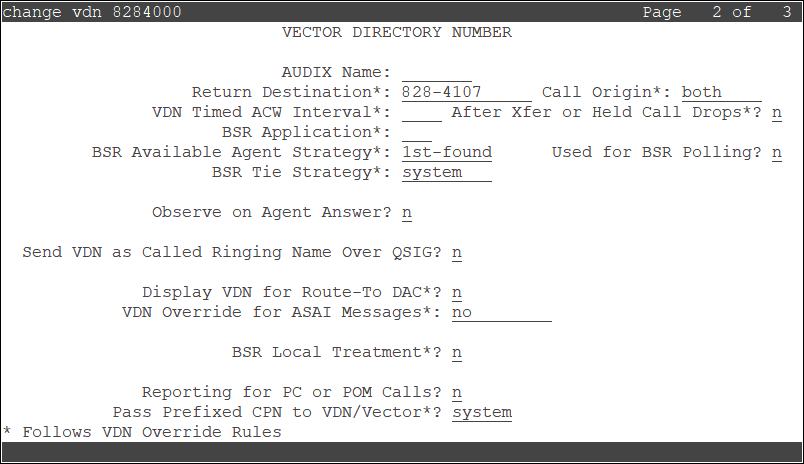

Example
