Rule and policy associations

Last Updated : Oct 09, 2018 |

The following is the list of rules and policies, for example, application, border, and media rules with domain policies:

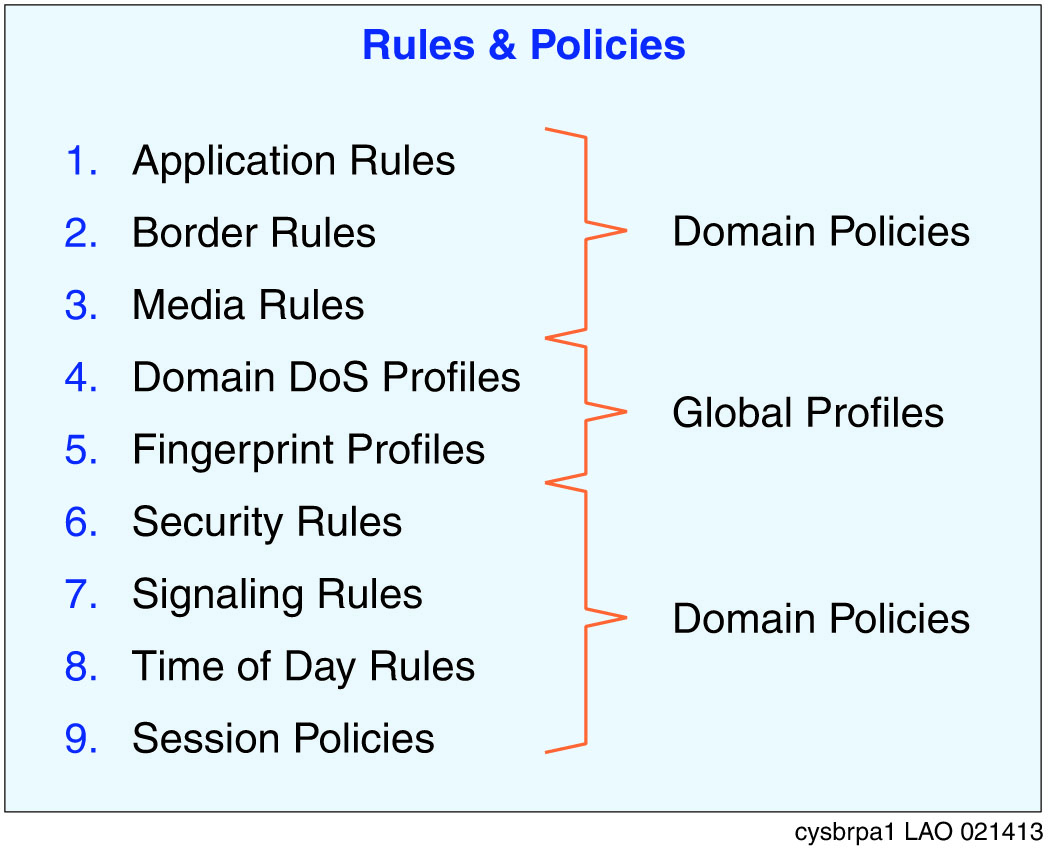

Figure : 1. List of rules with the policies


rules and policies associations example 1

The following are the types of signaling and media flows with the policies, policy groups, and sets, and the interaction with the elements and applications controlled:

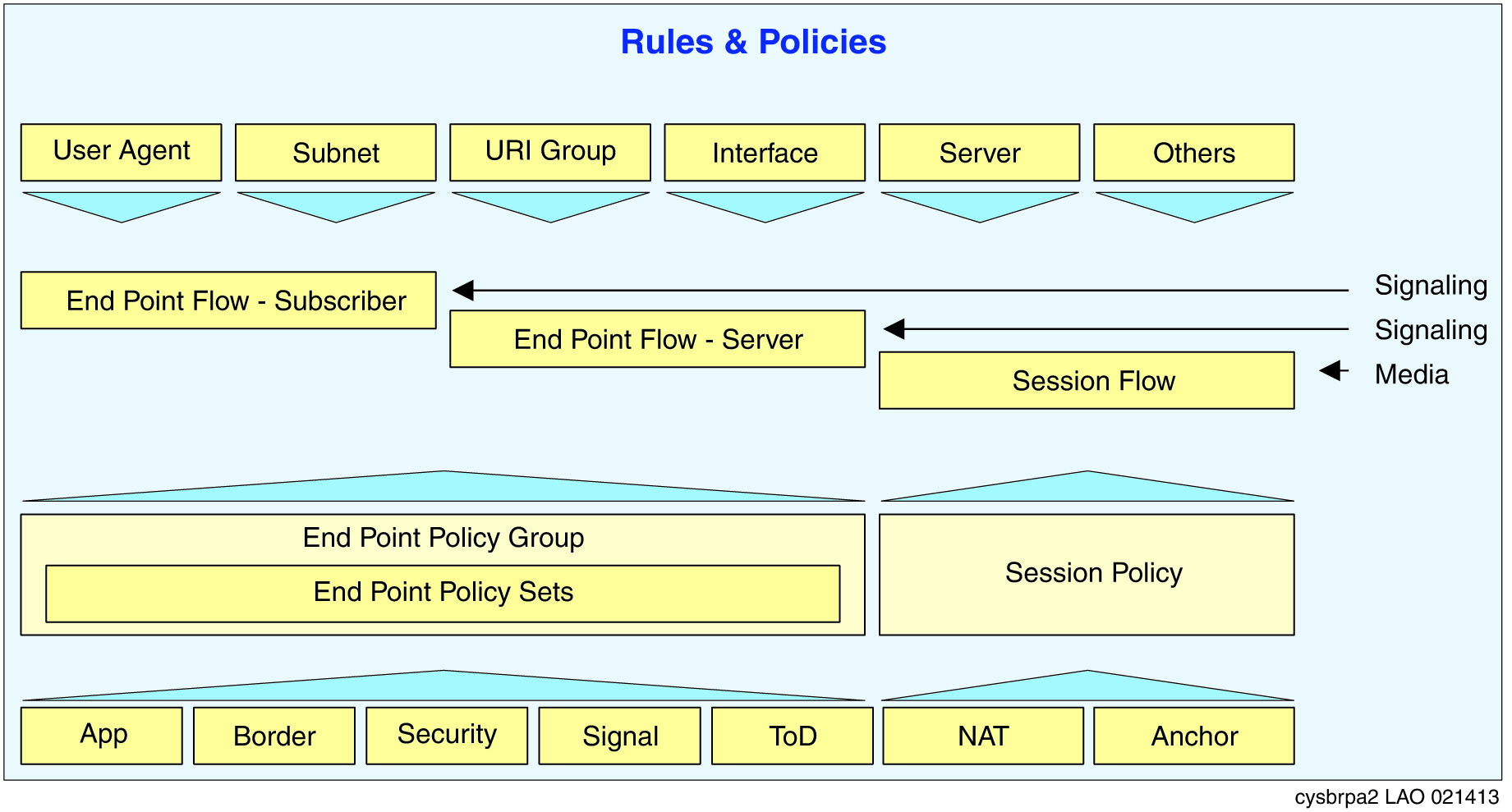

Figure : 2. Types of signaling and media flows with the policies and policy groups and sets


rules and policies associations example 2

The following are the session and subscriber flows with the policies:

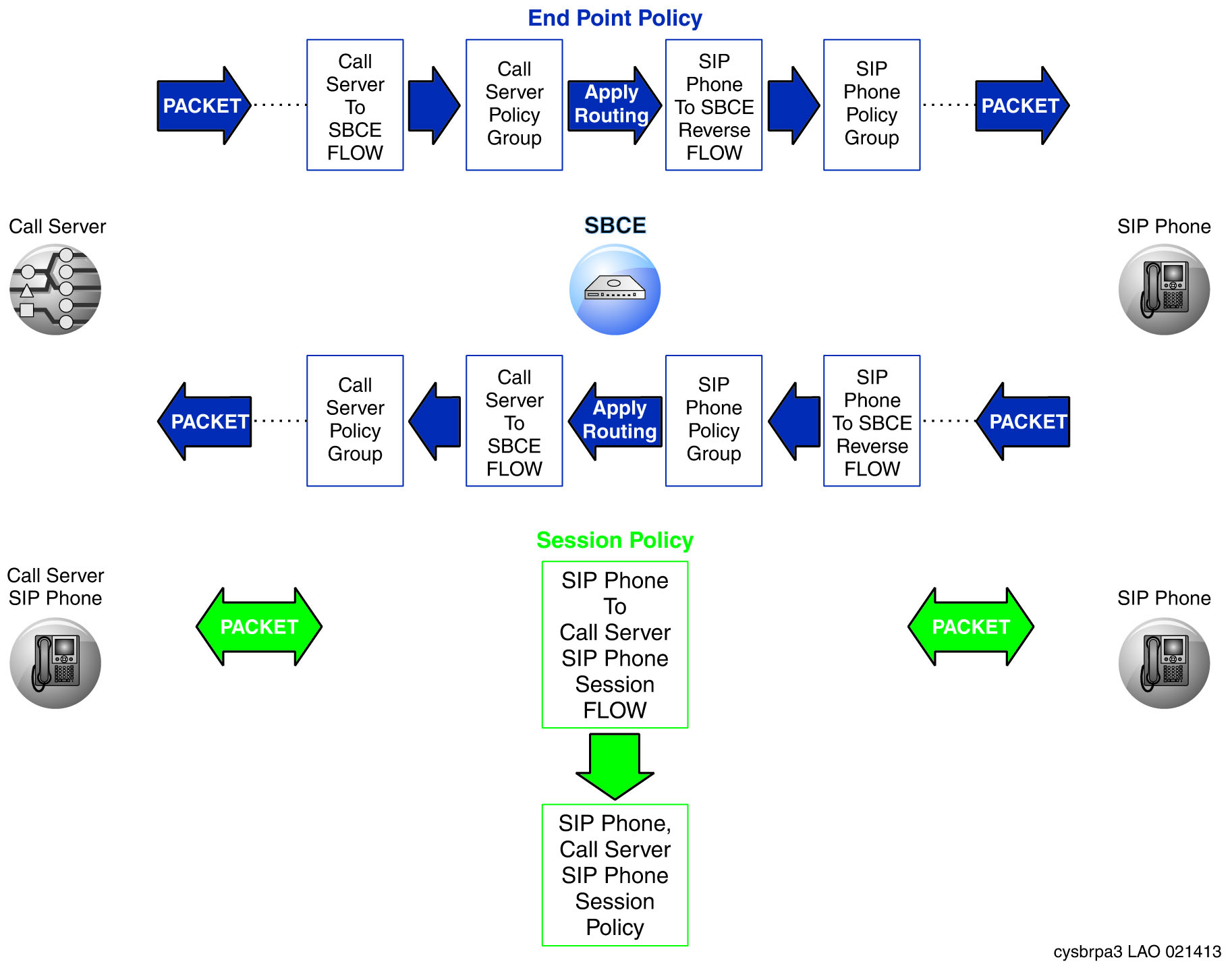

Figure : 3. Session and subscriber flows with the policies


rules and policies associations example 3
