LED Descriptions for Avaya Aura® Communication Manager Hardware Components
G450 LEDs

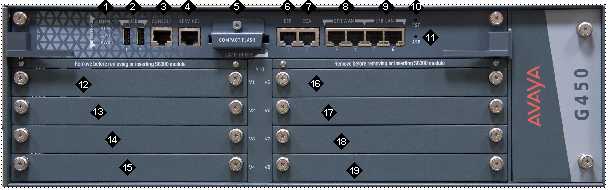

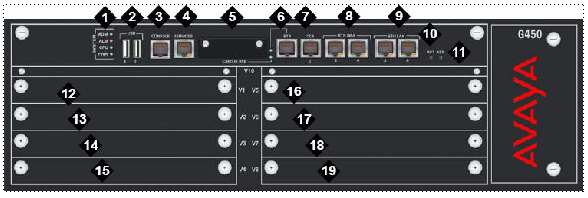

G450 has two hardware versions: G450 1.x with hardware suffix 1 and G450 2.x. with hardware suffix 2. The hardware suffix of the G450 is printed on the label displayed on the rear of the G450 chassis. The port and LED functions are identical unless otherwise indicated.
|
Name
|
Description
|
|---|---|
|
1
|
System LEDs
|
|
2
|
USB ports
|
|
3
|
Console port
|
|
4
|
Services port
|
|
5
|
Compact Flash slot
|
|
6
|
ETR (Emergency Transfer Relay) port
|
|
7
|
CCA (Contact Closure) port
|
|
8
|
Ethernet WAN (ETH WAN) ports
|
|
9
|
ETH LAN ports
|
|
10
|
RST (Reset) button
|
|
11
|
ASB (Alternate Software Bank) button
|
|
12
|
V1 - slot for standard media module or S8300
|
|
13
|
V2 - standard media module slot
|
|
14
|
V3 - standard media module slot
|
|
15
|
V4 - standard media module slot
|
|
16
|
V5 - standard media module slot or S8300 server
|
|
17
|
V6 - standard media module slot
|
|
18
|
V7 - standard media module slot
|
|
19
|
V8 - standard media module slot
|
