Signaling Manipulation Scripts field descriptions

Last Updated : Mar 24, 2017 |

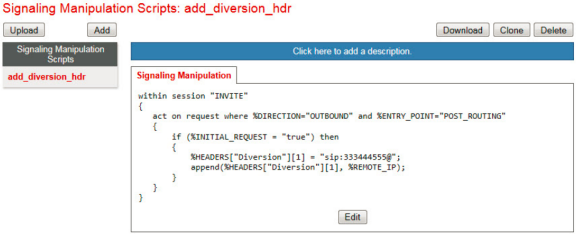

The Signaling Manipulation scripts pane lists all scripts that are stored on the device. Clicking on a script name in the list displays the script in the SigMa Editing window to the right, where the script can be modified.

Button

Description

Edit

To make modifications to the existing script.

Save

To save the changes to the script after making modifications to the script.

Note:

After Save Button is clicked, the script will be transparently submitted to the backend and validated before it is saved to the disk. If the script fails validation, error messages are displayed to the user to correct any syntax errors in the script.

Add

To create a new script by opening up a blank SigMa Editing window to the right.

Upload

To upload the selected script to a remote location.

Download

To download a script to the device from a remote location.

Clone

To copy the selected script to a new script name to modify the newly named script for a different functionality.

Delete

To delete the selected script.
