Architecture

Last Updated : Apr 25, 2023 |
Prolog information
Metadata
Keywords:
The Avaya SBC architecture uses a standard platform and a micro platform. The standard platform example is a single Avaya SBC device deployed in the core with the call server complex and controlled by a separate EMS device. In the following figure, the ports for Dell R210ii are shown as an example for standard platform servers. The micro platform example is a single SBC device deployed in the enterprise DMZ and controlled by a separate EMS device.
Note:
You can deploy the standard platform device and the Portwell platform device in either architecture.

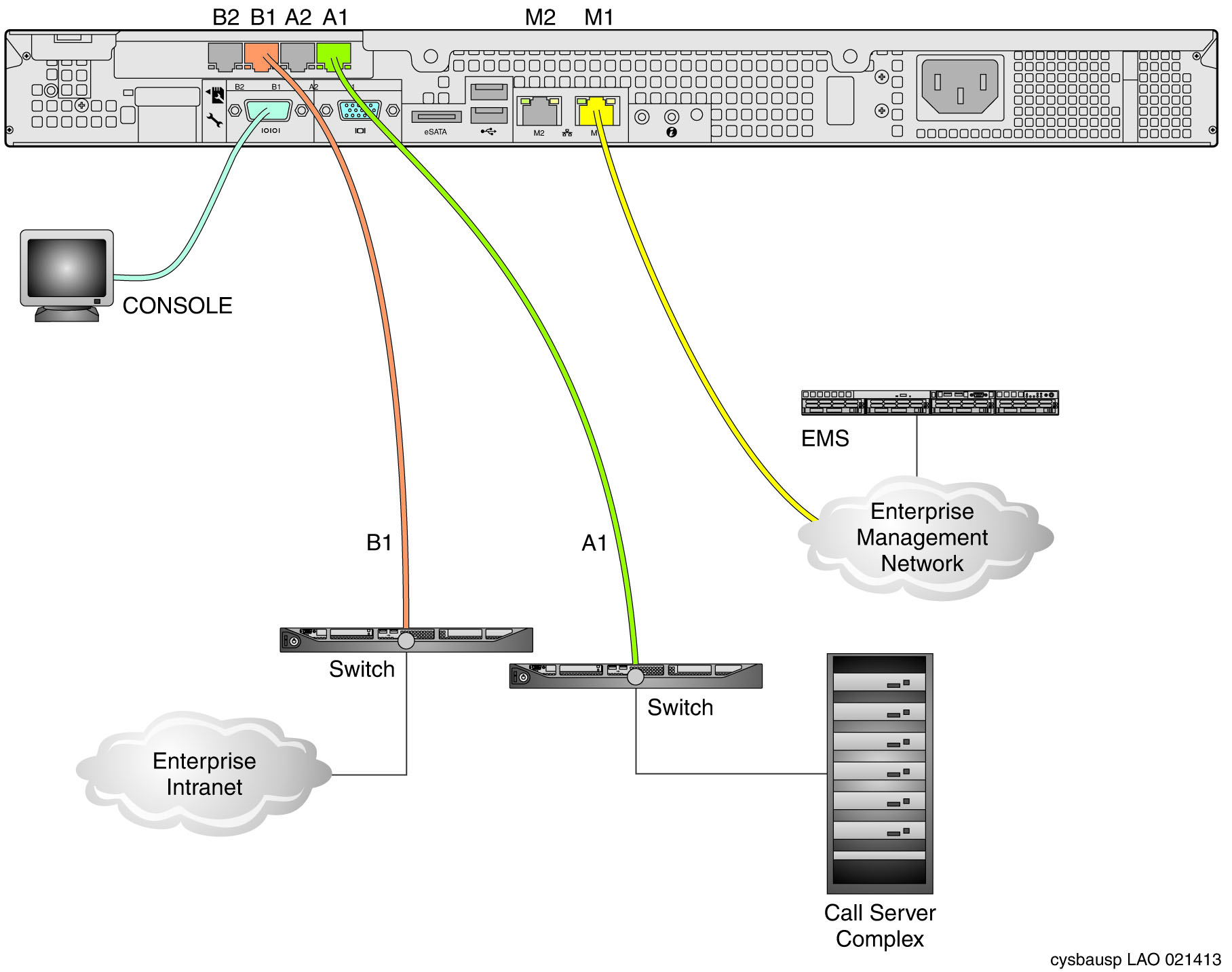

Figure: Avaya SBC architecture using a standard platform

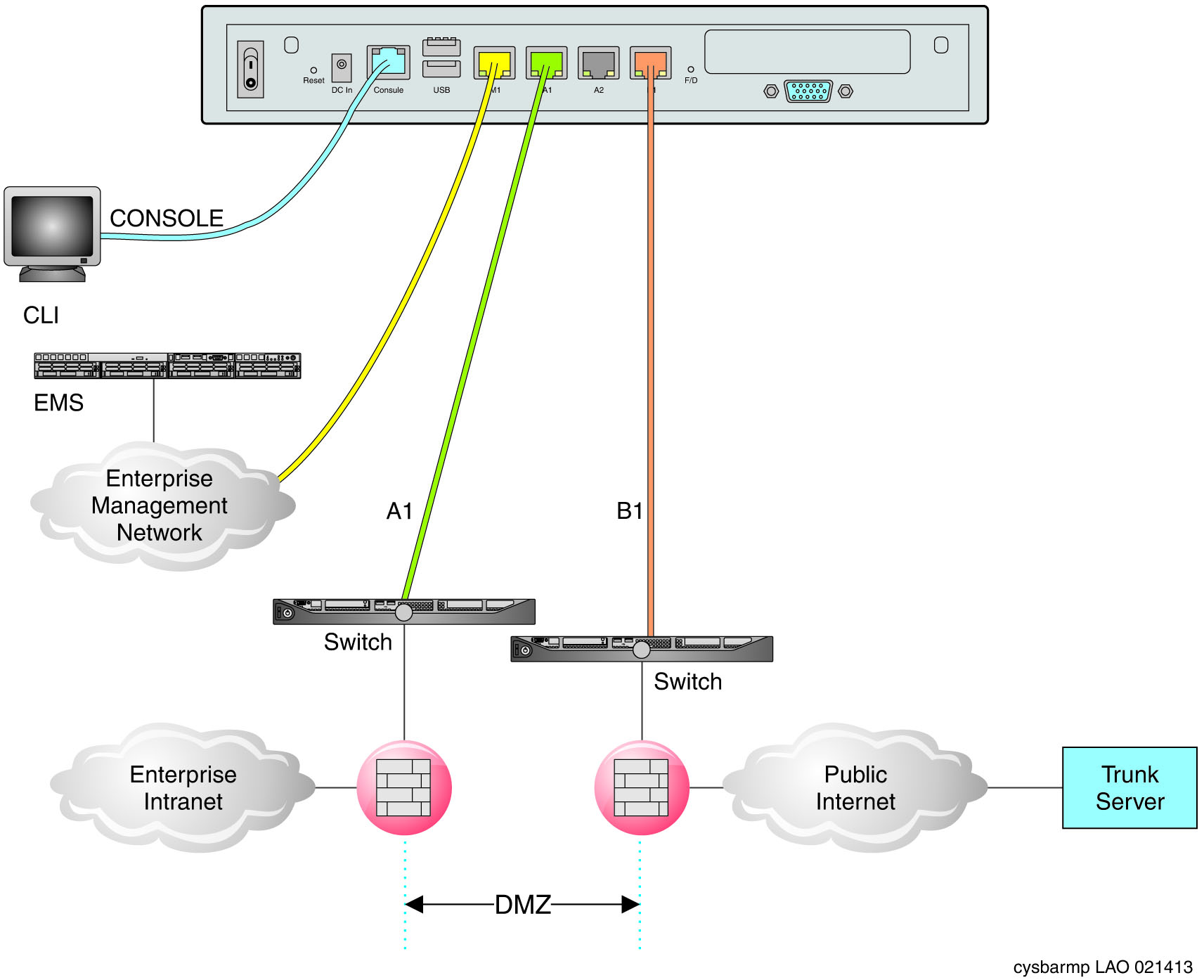

Figure: Avaya SBC architecture using a micro platform
Example of Avaya SBC architecture that uses a micro platform.
