Rule and policy associations

Last Updated : Oct 09, 2018 |
Prolog information
Metadata
Keywords:
The following is the list of rules and policies, for example, application, border, and media rules with domain policies:

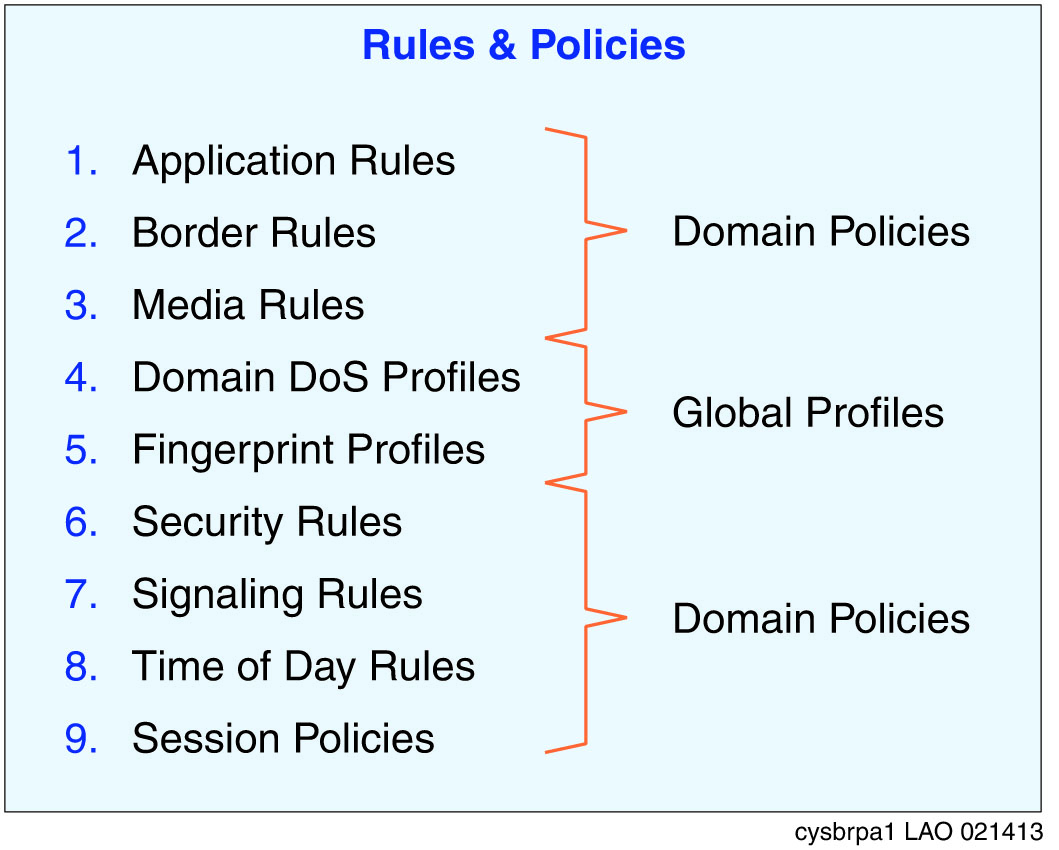

Figure: List of rules with the policies
rules and policies associations example 1
The following are the types of signaling and media flows with the policies, policy groups, and sets, and the interaction with the elements and applications controlled:

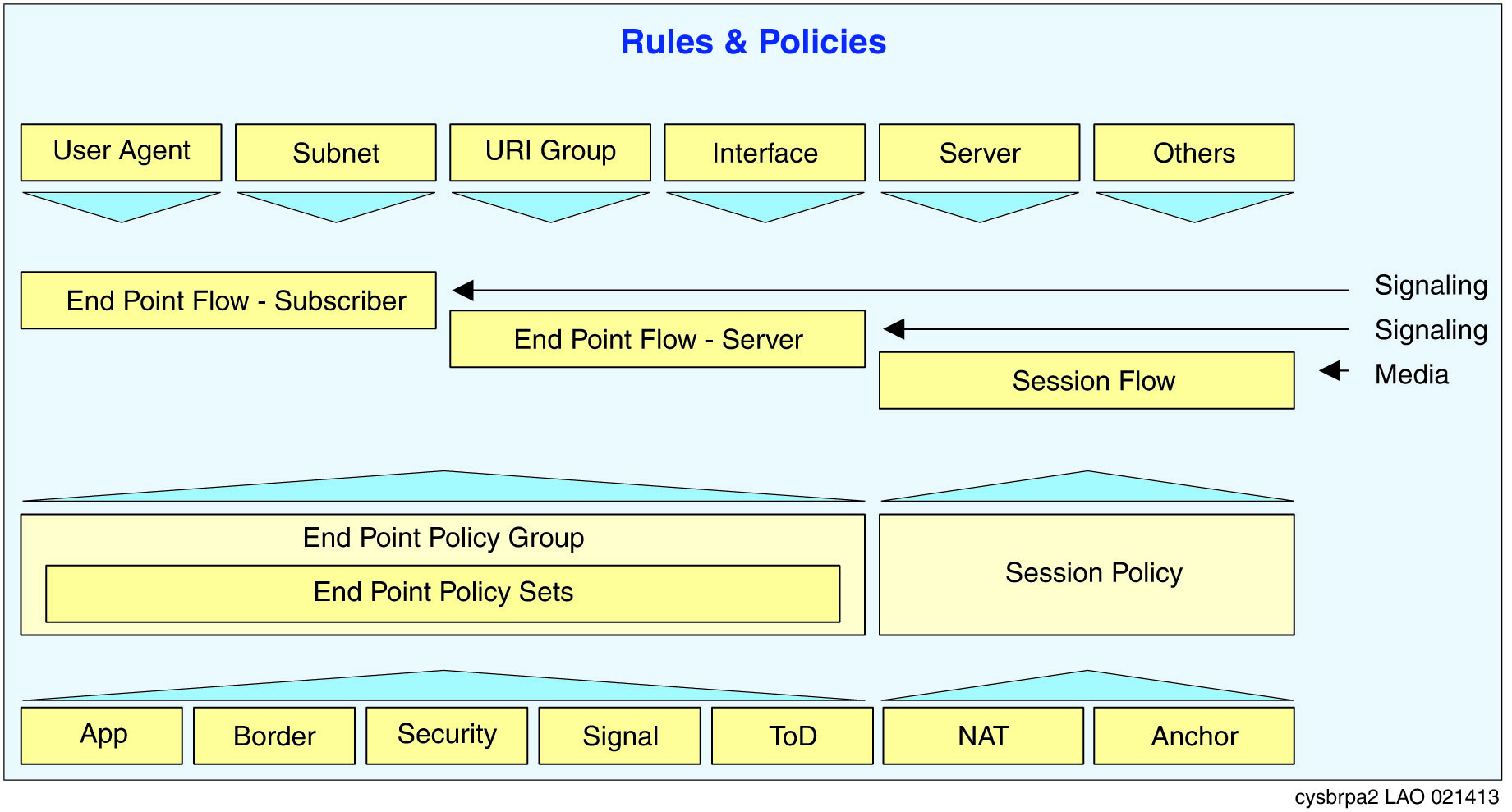

Figure: Types of signaling and media flows with the policies and policy groups and sets
rules and policies associations example 2
The following are the session and subscriber flows with the policies:

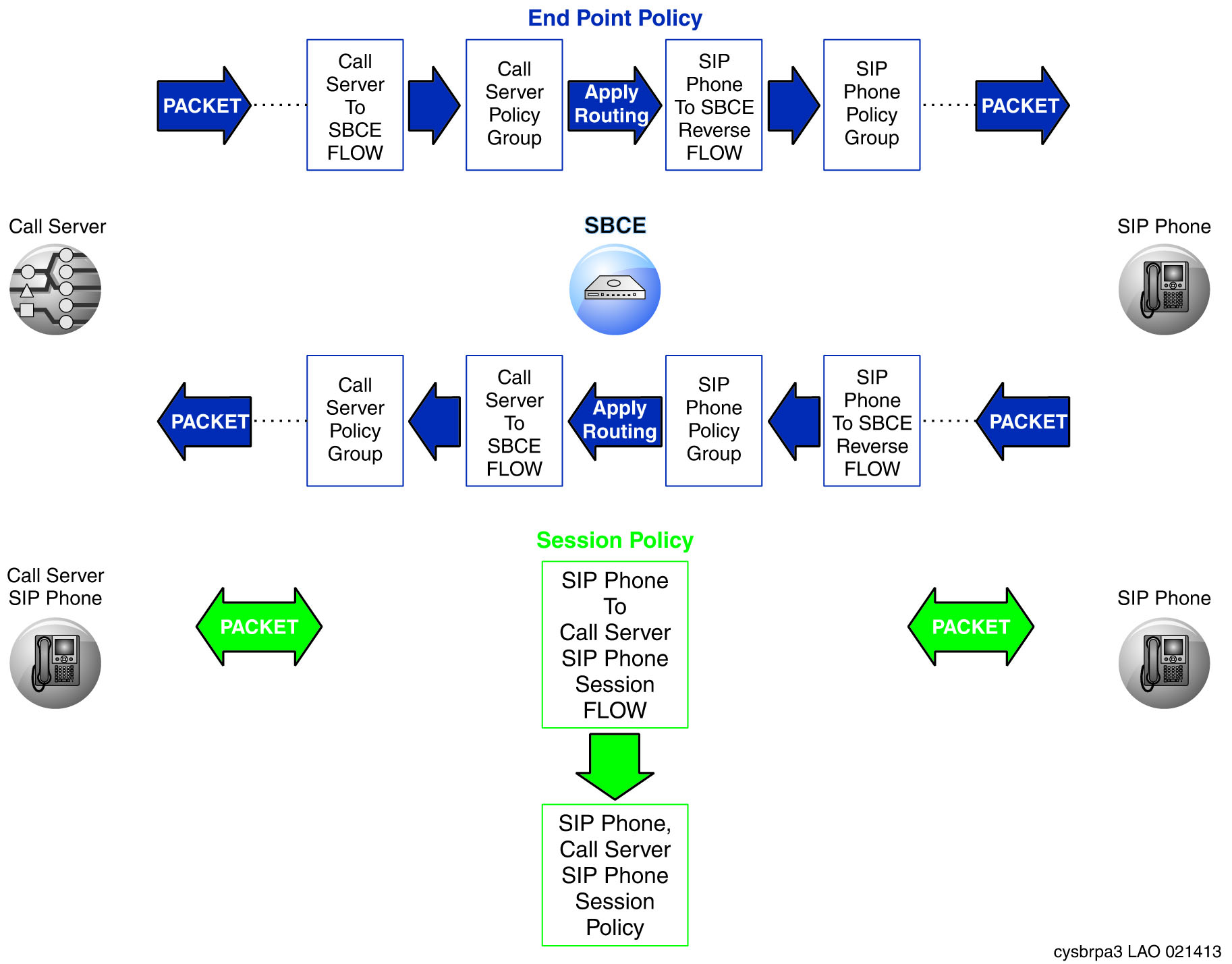

Figure: Session and subscriber flows with the policies
rules and policies associations example 3
