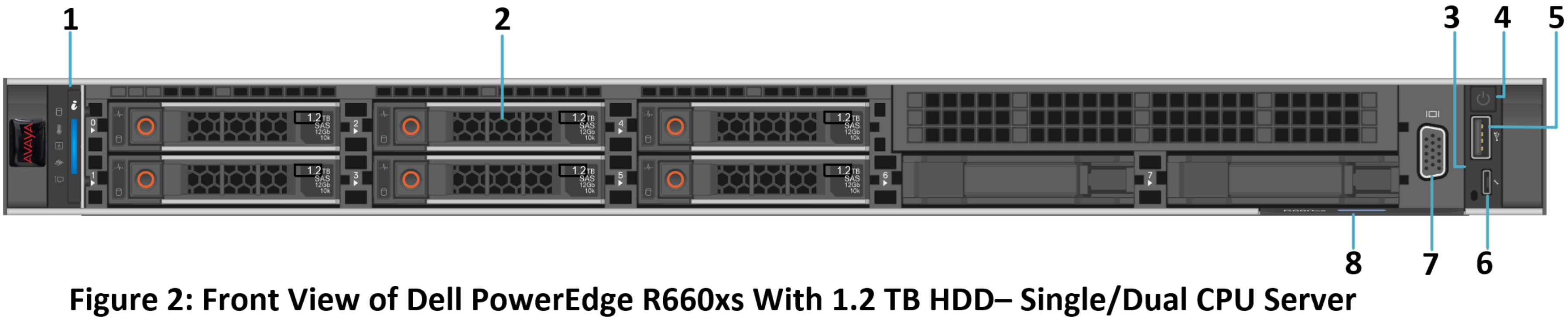

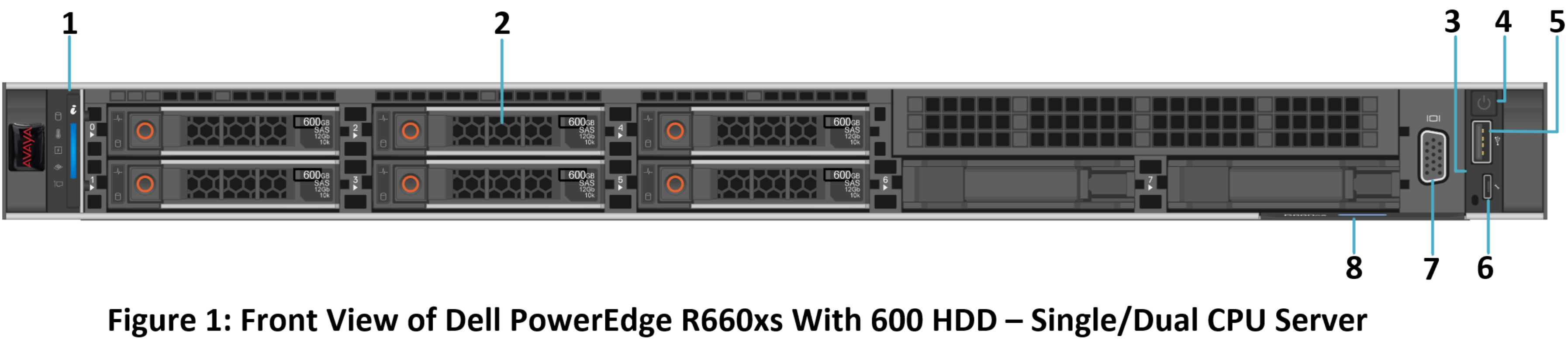

Front view of Dell™ PowerEdge™ R660xs Server

Last Updated : May 08, 2026 |
Prolog information
Metadata
Keywords:
Note:
The Dell R660xs does not contain a CD-ROM drive. All media installation is done using USB.
No.
Item
Icon
Description
1
Left control panel
NA
Displays the system health, system ID, and status LED indicators.
  • Status LED: Enables you to identify failed hardware components. There are up to five status LEDs and an overall system health LED (chassis health and system ID) bar.
2
Drive slots
N/A
Enables installation of hard disk drives (HDDs) that are supported on your system.
3
Right control panel
NA
Contains the power button, USB port, iDRAC Direct micro port, and the iDRAC Direct status LED.
4
Power button
Indicates if the system is powered on or off. Press the power button to manually power on or off the system.
Note:
Press the power button to gracefully shut down an ACPI-compliant operating system.
5
USB 2.0 port
The USB is a 4-pin connector and 2.0-compliant. This port enables you to connect USB devices to the system.
6
iDRAC Direct micro port
The iDRAC Direct port (Micro-AB USB) enables you to access the iDRAC direct features.
7
VGA port
Enables connection to the display device (console) of the system. If the user connects to the front VGA port, the rear VGA port does not function.
8
Express service tag
NA
The Express Service Tag is a slide-out label panel that contains system information such as Service Tag, NIC, MAC address, and so on. If you have opted for the secure default access to iDRAC, the Information tag will also contain the iDRAC secure default password.
