Avaya G450 Branch Gateway Overview and Specification
G450 Branch Gateway physical description

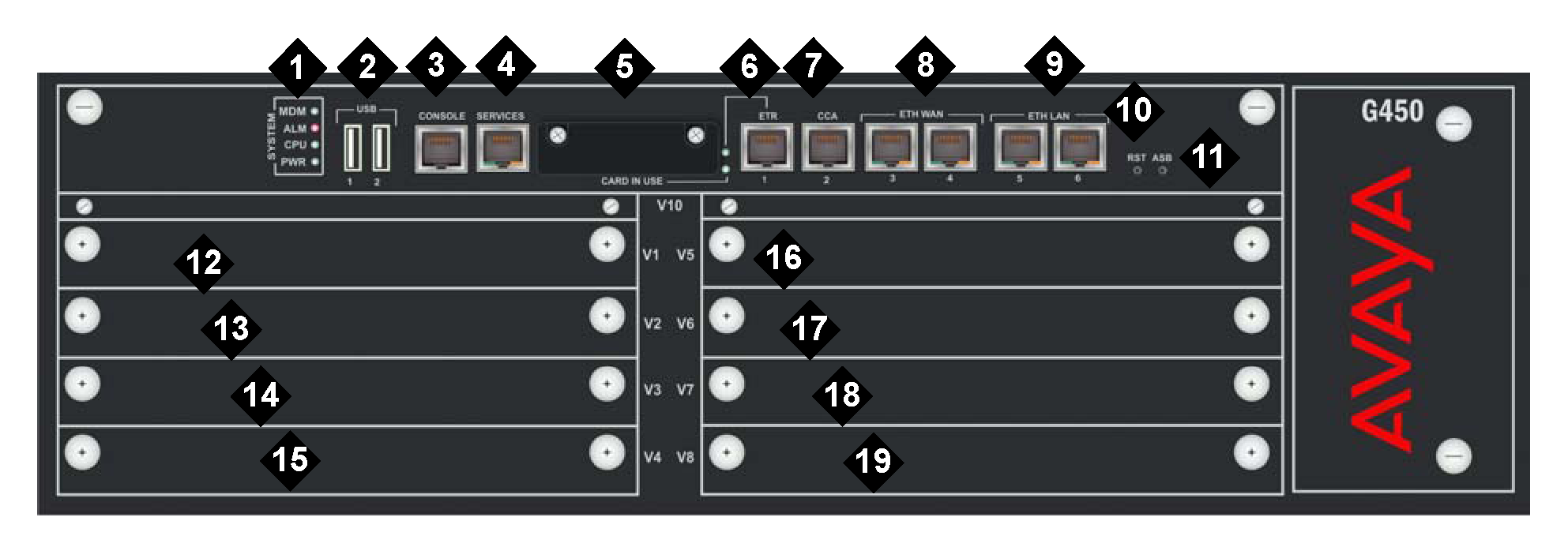

G450 Branch Gateway has four hardware versions, G450 1.x, G450 2.x, G450 3.x, and G450 4.x. The G450 Branch Gateway hardware suffix printed on the label on the rear of the chassis (1.x, 2.x, 3.x, or 4.x) corresponds to versions 1, 2, 3, and 4 respectively.
|
No
|
Name
|
Description
|
|---|---|---|
|
1
|
System (SYSTM) LEDs
|
LEDs that indicate status of the system.
|
|
2
|
USB
|
USB ports for the system.
|
|
3
|
CONSOLE (CNSL)
|
RS-232 port for services and maintenance access. RJ-45 connector.
|
|
4
|
SERVICES (SVCS)
|
Ethernet 10/100 port for services and maintenance access. RJ-45 connector.
|
|
5
|
CARD IN USE (CF BSY) / COMPACT FLASH (CMPCT FLSH) LED
|
Compact flash slot.
|
|
6
|
ETR
|
Emergency Transfer Relay port that controls two external 808A emergency transfer panels. RJ-45 connector.
|
|
7
|
CCA
|
RJ-45 port for ACS (308) contact closure adjunct box.
|
|
8
|
ETH WAN
|
Two 10/100 Base TX Ethernet WAN ports. RJ-45 connectors.
|
|
9
|
ETH LAN
|
Two 10/100/1000 Base TX Ethernet LAN ports. RJ-45 connectors.
|
|
10
|
RST
|
Reset button. Resets the chassis configuration.
|
|
11
|
ASB
|
Alternate Software Bank button. Reboots G450 Branch Gateway with the software image in the alternate bank.
|
|
12
|
V1
|
Slot for standard media module or S8300 Server.
|
|
13
|
V2
|
Standard media module slot.
|
|
14
|
V3
|
Standard media module slot.
|
|
15
|
V4
|
Standard media module slot.
|
|
16
|
V5
|
Slot for standard media module or S8300 Server.
|
|
17
|
V6
|
Standard media module slot.
|
|
18
|
V7
|
Standard media module slot.
|
|
19
|
V8
|
Standard media module slot.
|
