G430 LEDs

Last Updated : Jun 20, 2018 |

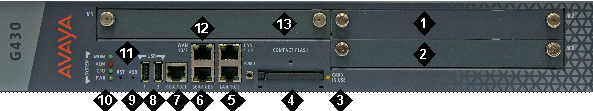

Figure : 1. G430 Branch Gateway front panel ports, slots, and LEDs

Name

Description

1

V2 - standard media module slot

2

V3 - standard media module slot

3

Compact Flash CARD IN USE LED

4

Compact Flash slot

5

ETH LAN port

6

Services port

7

Contact Closure (CCA) port

8

USB ports

9

ASB (Alternate Software Bank) button

10

System LEDs

11

RST (Reset) button

12

Ethernet WAN (ETH WAN) ports

13

V1 - slot for standard media module or S8300E server
