G450 LEDs

Last Updated : Dec 21, 2023 |

G450 has two hardware versions: G450 1.x with hardware suffix 1 and G450 2.x. with hardware suffix 2. The hardware suffix of the G450 is printed on the label displayed on the rear of the G450 chassis. The port and LED functions are identical unless otherwise indicated.

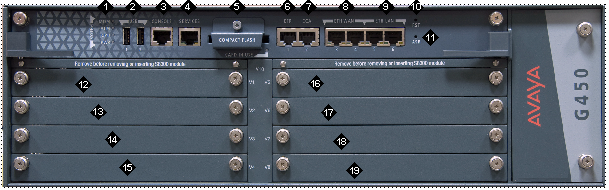

Figure : 1. G450 Branch Gateway version 1.x front panel ports, slots, and LEDs

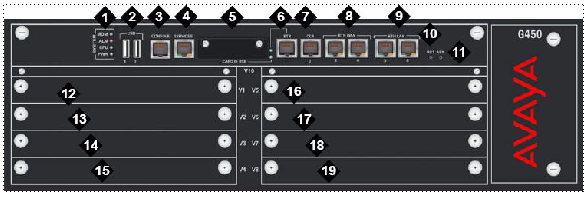

Figure : 2. G450 Branch Gateway version 2.x front panel ports, slots, and LEDs

Name

Description

1

System LEDs

2

USB ports

3

Console port

4

Services port

5

Compact Flash slot

6

ETR (Emergency Transfer Relay) port

7

CCA (Contact Closure) port

8

Ethernet WAN (ETH WAN) ports

9

ETH LAN ports

10

RST (Reset) button

11

ASB (Alternate Software Bank) button

12

V1 - slot for standard media module or S8300

13

V2 - standard media module slot

14

V3 - standard media module slot

15

V4 - standard media module slot

16

V5 - standard media module slot or S8300 server

17

V6 - standard media module slot

18

V7 - standard media module slot

19

V8 - standard media module slot
