Multiple server HA deployment

Last Updated : May 02, 2023 |

In a multiple server deployment, the EMS and SBC software are installed on separate servers.

In an HA deployment, SBC servers are deployed in pairs. Each pair has one SBC server configured as Primary while the other is configured as Secondary.

Optionally, the EMS software can be replicated in an active/active HA pair deployment. In an active/active deployment, the EMS software is installed on two servers. One EMS server is configured as Primary and the other is configured as Secondary. An EMS HA pair must be reachable to each other and with the SBC servers, and can be in different geographical locations.

One EMS server or an active/active pair of EMS servers can control up to 12 separate pairs of SBC servers.

Note:

When deploying an HA configuration on Amazon Web Services, you only have to configure the SBC software on the primary device





Important:

All hardware server types, virtualized environment platforms, and cloud platforms support the multi-server HA deployment type.

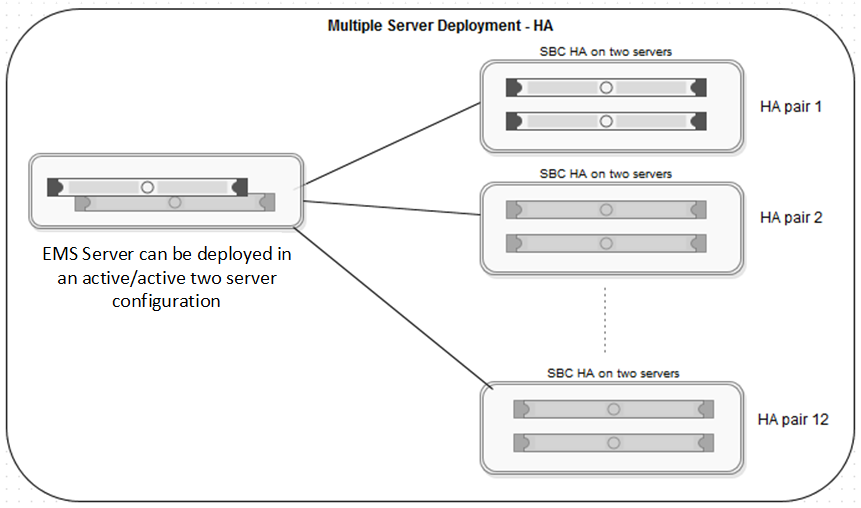

Although the HA pairs and non-HA deployments are shown separately in this figure, EMS can control both an SBC HA server pair as well as a single SBC server.

SBC HA server pairs must adhere to the following requirements:

  • You can enable and use the HA deployment feature only if the license file contains an HA license.

  • The HA pair servers must reachable by the EMS or EMS HA pair servers over the Management Plane (M1).

  • The HA pair servers must be reachable between the devices over the Management link (M1) .

  • The HA pair servers must have the HA link (M2) reachable between the HA pair servers.

  • The HA pair servers must set up to have all the data interfaces between the servers replicated so that the servers are connected in same subnets. For example, the A1 data interface in one SBC server should be in the same subnet as the A1 data interface of the paired SBC server. This allows you to meet the requirement that failover be functional in an active/standby mode.

  • In a multiple server HA virtualized deployment, when there are multiple HA pairs and automatic IP addressing is being used on the HA link (M2), every HA pair should either have their own isolated vSwitch or each HA pair should use different IP addresses reachable with their HA pairs as stated previously for M2 connectivity.
