J179 Telephone

Last Updated : Feb 16, 2021 |
Prolog information
Metadata
Keywords:

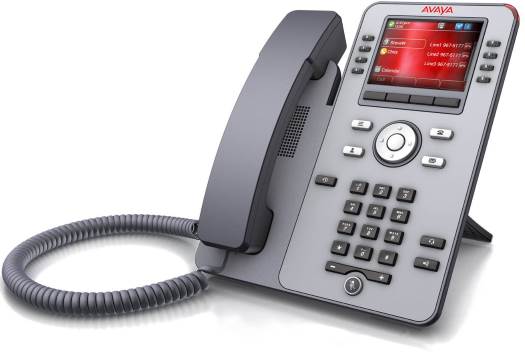

The J179 telephone is a SIP telephone supported on systems running Release 11.0 or higher software.
Features include:
  • 3.5" Color display (320 x 240).
  • 24 programmable button slots (buttons 1 to 24) for call appearance and feature buttons.
    • The button slots can be arranged in single or dual column display. See Single/Dual Column Display.
    • Additional programmable buttons (buttons 25 to 96) can be added by the addition of up to 3 button modules. See Button Modules.
  • 8 twin-LED (red and green) physical buttons used to indicate the status of the programmable button slots currently in view.
  • 4 Additional buttons under the primary display. These are used for context-sensitive soft key functions. The buttons current function is indicated by the display label above it. See Call Soft Keys.
  • Illuminated buttons for missed calls/call log, speaker, headset and mute.
  • Non-illuminated buttons for messages, contacts, phone and configuration menu access.
  • Call alerting/message waiting indication lamp.
  • Dual 10/100/1000 Mbps Ethernet ports. One for phone network connection. One for PC pass-through to allow co-location with a user PC.
  • The phone includes a two-position desk stand. An optional wall mounting stand is available.
  • The J100 Series phones support the following audio codecs on IP Office: G.711, G.726a, G.729, G.729a, G.729ab, G.722.
  • Power via either PoE (Power over Ethernet). The phone is a PoE Class 1 device. An optional 5V power supply unit is available for locations where PoE is not available or suitable.
    • The phone changes to PoE Class 2 when using a button module or modules.
  • Slot for an optional J100 wireless module. The module allows the phone to connect to the network using Wi-Fi and/or to use Bluetooth headsets.
