Typical adjunct power connections end-to-end

Last Updated : Feb 25, 2022 |
Prolog information
Metadata
Keywords:
The figure shows typical connection locations for adjunct power.

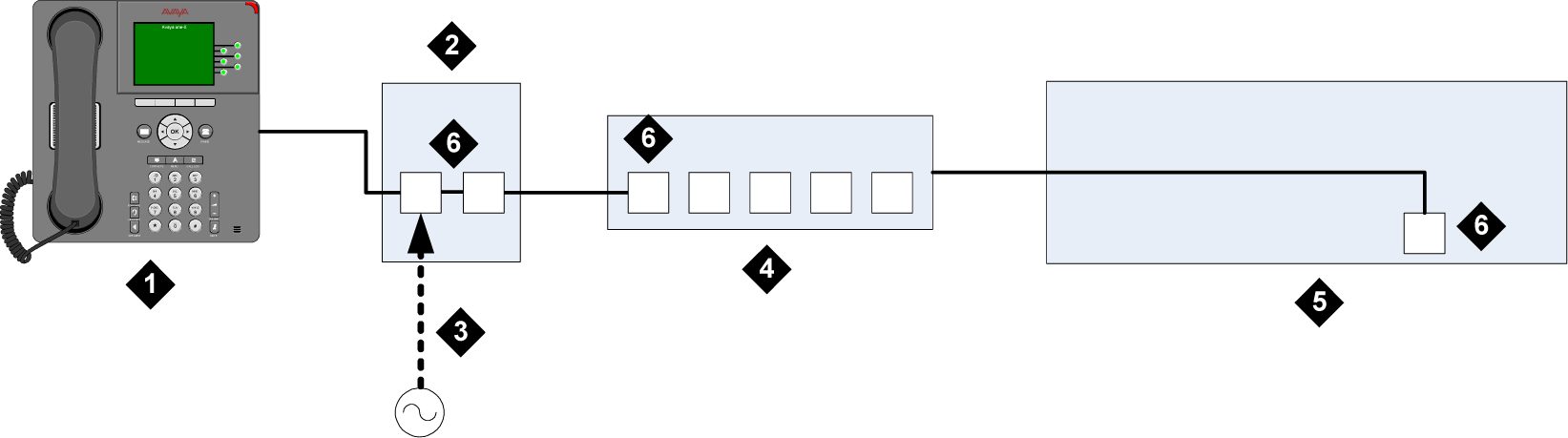

Figure: Example Adjunct Power Connections
Figure notes:
  1. Avaya IP telephone
  2. Power brick
  3. AC power inlet
  4. Switch
  5. Branch Gateway
  6. LAN port
