• System Location (optional): For example, Thornton (could be a site location name, city name, etc.)

• System contact and email: For example, John Kennedy jkennedy@yourdomain.com

• System description (optional): For example, Avaya ASP 130 R6.0.x – (host FQDN)

• Do you want to enable SNMPv1/SNMPv2c access? y/n: n

• Do you want to enable SNMPv3 access? y/n: y

• Do you want to add/change an SNMPv3 user y/n: y

• Enter the SNMPv3 username, for example: Test1v3

• Enter the index of the authentication hash type: (0=SHA, 1=SHA-224, etc…) e.g. 1

  Note:

  SHA/SHA1 is considered deprecated and, therefore, vulnerable to security scanners.

• Enter the Authentication PassPhrase, for example: avaya123

  Note:

  This field is mandatory and requires a minimum of 8 characters.

• Re-enter the Authentication PassPhrase, for example: avaya123

• Enter the index of the Encryption algorithm: (0=AES, 1= AES-192, etc…) e.g. 0

• Enter the Encryption PassPhrase, for example: avaya123

  Note:

  This field is mandatory and requires a minimum of 8 characters.

• Re-enter the Encryption PassPhrase, for example: avaya123

• Do you want to add/change an SNMPv3 user y/n (optional): n

  Note:

  In this example, a single SNMPv3 will be configured but multiple users can be configured at the same time.

• Do you want to add SNMPv1 trap receivers? y/n: (n) n

• Do you want to add SNMPv2c trap2 receivers? y/n: (n) n

• Do you want to add SNMPv2c inform receivers? y/n: (n) n

• Do you want to add SNMPv3 trap receivers? y/n: (n) y

  #### System will display Existing SNMPv3 users previously created e.g: Test1v3 ####

• Enter the IP/FQDN of the host receiving the traps: e.g. 192.168.10.254

• Enter the optional host port where to send the traps: 162 is the default value and will be used in this example.

• Do you want to add another SNMPv3 trap receiver? y/n (optional): n

  Note:

  In this example a single trap receiver will be configured, however, multiple trap receivers can be configured at the same time.

• Do you want to add SNMPv3 inform receivers? y/n: (n) (optional)

  Note:

  In this example inform receivers are not configured. SNMP inform traps require the SNMP manager (NMS Tool) to send an acknowledgment that it received the inform trap (get-response), therefore providing more reliability. If the manager does not acknowledge the inform trap, the agent will retry sending the inform trap a certain number of times. Both inform trap and snmp trap carry the same information.

ASP130 output example:

[root@asp130-r660xs-a31-8HHD ~]# configSnmp
Note: The configured or default value is displayed in parentheses ().
Press 'Enter' to accept it, or type a new value.
Enter the system location: () Thornton
Enter the system contact and email: () John Kennedy jkennedy@yourdomain.com
Enter the system description: (Avaya ASP 130 R6) Avaya ASP 130 R6.0.x - asp130-r660xs-a31-8HHD.acp.avaya.com
Do you want to enable SNMPv1/SNMPv2c access? y/n: (n) n
Do you want to enable SNMPv3 access? y/n: y
Do you want to add/change an SNMPv3 user y/n: (n) y
Enter the SNMPv3 username: () Test1v3
 0) SHA
 1) SHA-224
 2) SHA-256
 3) SHA-384
 4) SHA-512
 5) MD5
Enter the index of the authentication hash type: (0=SHA) 1
Enter the Authentication PassPhrase:
Re-Enter the Authentication PassPhrase:
 0) AES
 1) AES-192
 2) AES-256
 3) DES
Enter the index of the Encryption algorithm: (0=AES) 0
Enter the Encryption PassPhrase:
Re-Enter the Encryption PassPhrase:
Do you want to add/change an SNMPv3 user y/n: (n) n
Do you want to add SNMPv1 trap receivers? y/n: (n) n
Do you want to add another SNMPv2c trap2 receiver? y/n: (n) n
Do you want to add SNMPv2c inform receivers? y/n: (n) n
Do you want to add SNMPv3 trap receivers? y/n: (n) y
Existing SNMPv3 users: Test1v3
Enter the IP/FQDN of the host receiving the traps: 192.168.10.254
Enter the optional host port where to send the traps: (162)
Do you want to add another SNMPv3 trap receiver? y/n: (n) n
Do you want to add SNMPv3 inform receivers? y/n: (n) n
[root@asp130-r660xs-a31-8HHD ~]#

•  systemctl status snmpd

ASP130 Output Example:

[root@asp130-r660xs-a31-8HHD ~]# systemctl status snmpd
● snmpd.service - Simple Network Management Protocol (SNMP) Daemon.
   Loaded: loaded (/usr/lib/systemd/system/snmpd.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2025-03-21 14:10:44 MDT; 18min ago
  Process: 142066 ExecReload=/bin/kill -HUP $MAINPID (code=exited, status=0/SUCCESS)
 Main PID: 141140 (snmpd)
    Tasks: 1 (limit: 1643572)
   Memory: 7.2M
   CGroup: /system.slice/snmpd.service
           └─141140 /usr/sbin/snmpd -LS0-6d -f
Mar 21 14:10:44 asp130-r660xs-a31-8HHD.acp.avaya.com systemd[1]: Starting Simple Network Management Protocol (SNMP) Daemon....
Mar 21 14:10:44 asp130-r660xs-a31-8HHD.acp.avaya.com snmpd[141140]: NET-SNMP version 5.8
Mar 21 14:10:44 asp130-r660xs-a31-8HHD.acp.avaya.com systemd[1]: Started Simple Network Management Protocol (SNMP) Daemon..
Mar 21 14:19:19 asp130-r660xs-a31-8HHD.acp.avaya.com systemd[1]: Reloading Simple Network Management Protocol (SNMP) Daemon..
Mar 21 14:19:19 asp130-r660xs-a31-8HHD.acp.avaya.com snmpd[141140]: Reconfiguring daemon
Mar 21 14:19:19 asp130-r660xs-a31-8HHD.acp.avaya.com snmpd[141140]: NET-SNMP version 5.8 restarted
Mar 21 14:19:19 asp130-r660xs-a31-8HHD.acp.avaya.com systemd[1]: Reloaded Simple Network Management Protocol (SNMP) Daemon..

•	sudo cat /var/lib/net-snmp/snmpd.conf | grep EngineID

ASP130 Output Example:

[custadm@asp130-r660xs-a31-8HHD ~]$ sudo cat /var/lib/net-snmp/snmpd.conf | grep EngineID
[sudo] password for custadm:
oldEngineID 0x80001f8880c589fb4c72f08f6700000000

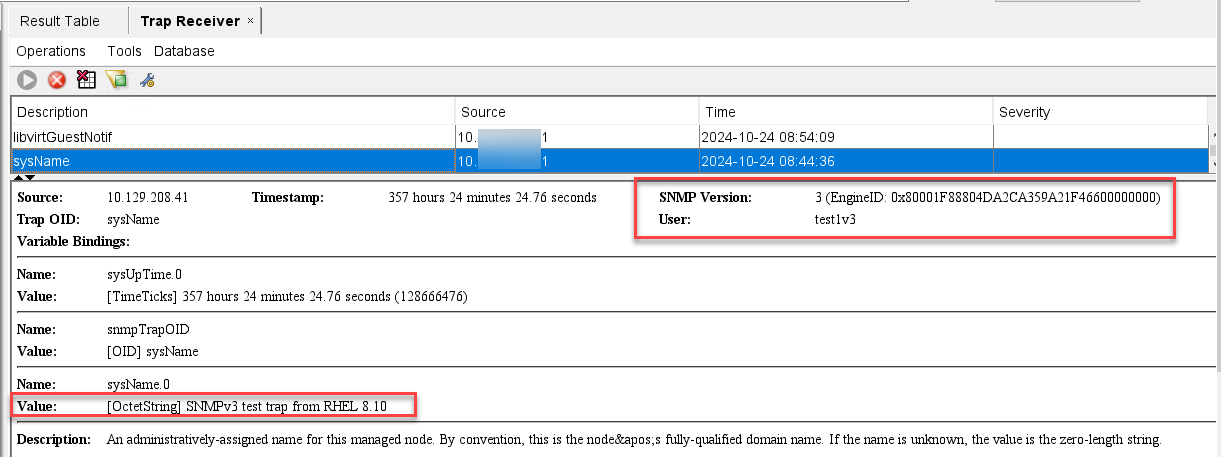

snmptrap -v3 -u <SNMPv3_user_created> -l authPriv -a SHA -A <authpassphrase> -x AES -X <privpassphrase> 192.168.10.254 '' SNMPv2-MIB::sysName sysName.0 s "SNMPv3 test trap from RHEL 8.10"

Example:

snmptrap -v3 -u test1v3 -l authPriv -a SHA -A avaya123 -x AES -X avaya123 10.129.209.21 '' SNMPv2-MIB::sysName sysName.0 s "SNMPv3 test trap from RHEL 8.10"
