Connecting an analog phone

Last Updated : Jun 15, 2020 |
Prolog information
Metadata
Keywords:
Analog line ports support up to 2,000 ft (609.6 m) for the phone equipment with a ringer load below 3 REN.
For a full list of supported phones, see Avaya G450 Branch Gateway Overview and Specification.
  1. Connect the phone to one of the following analog ports:
    • A universal analog port on an MM711 media module.
    • An analog line port on the punch down block connected to an MM716 media module.
      To connect the MM716 media module to a punch down block, see Connecting devices to the MM717 and MM716 media modules.
    • A LINE port on an MM714 or MM714B media module.
  2. Plug the phone into the telephone port.
    ADDITIONAL INFORMATION:
    The following images show the analog port location on MM711, MM714, MM714B, and MM716 media modules.

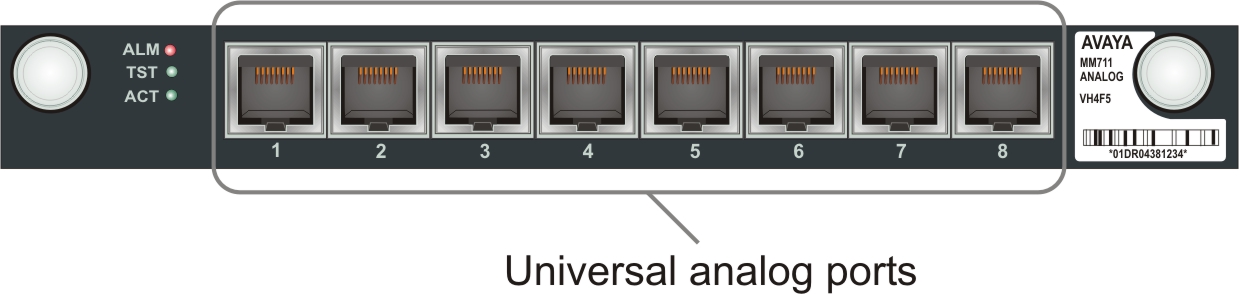

    Figure: MM711 media module analog ports

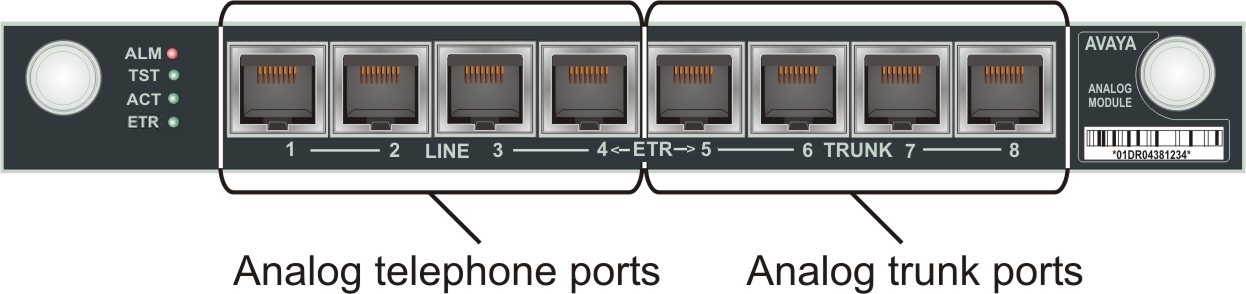

    Figure: MM714 media module analog ports
    Figure: MM714B media module analog ports

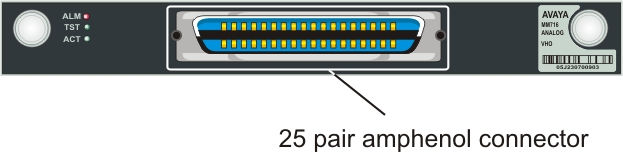

    Figure: MM716 media module amphenol connector
