Typical adjunct power connections

Last Updated : Oct 07, 2020 |
Prolog information
Metadata
Keywords:
The 400B2 adapter is convenient for connecting local -48 VDC power to a modular plug. See the figure.
See Documentation for Communication Manager, Branch Gateway and Servers CD, 03-300151, for detailed power supply information and installation procedures.

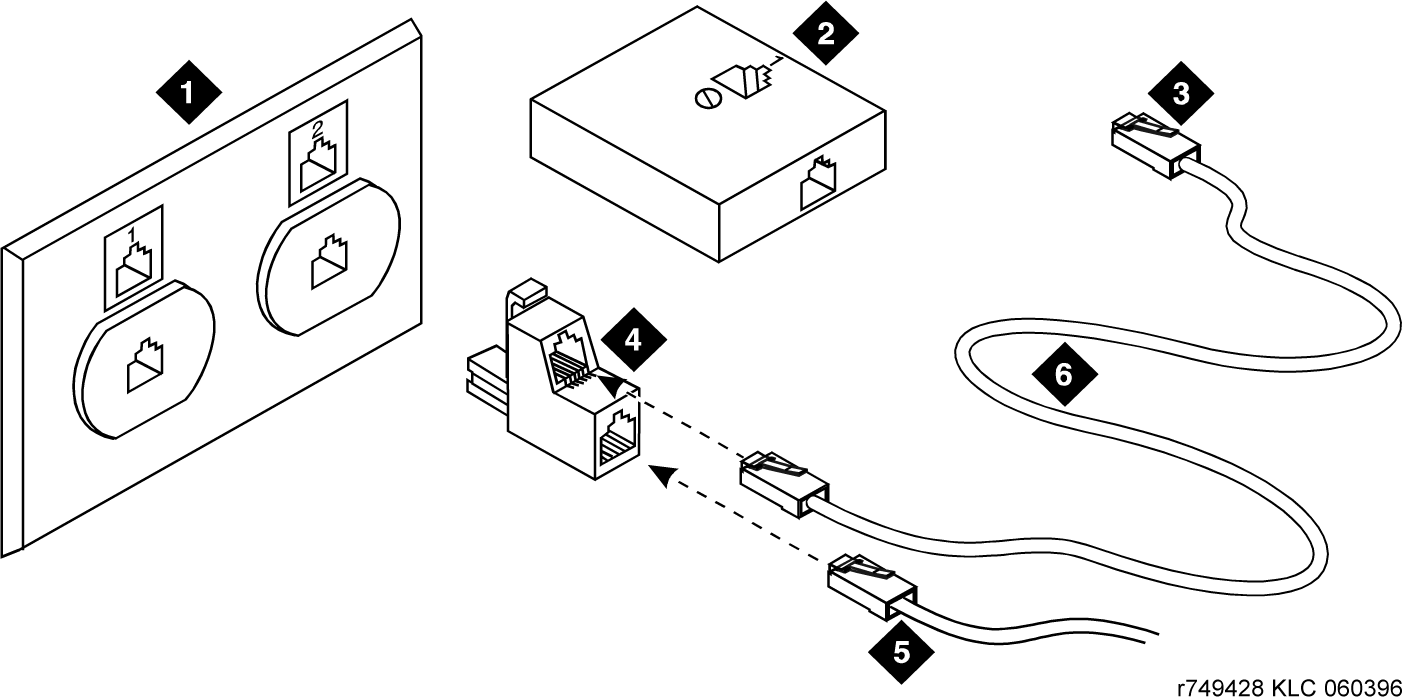

Figure: 400B2 Adapter Connecting to a Modular Plug
Figure notes:
  1. Flush-Mounted Information Outlet
  2. Surface-Mounted Information Outlet
  3. To Individual Power Unit
  4. 400B2 Adapter
  5. To Telephone
  6. Destination Service Access Point (DSAP) Power Cord
