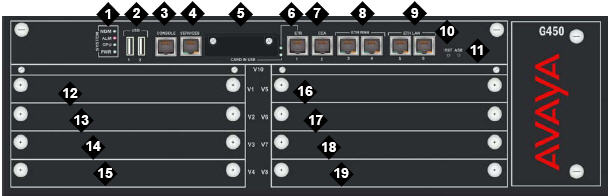

Front panel of G450

Last Updated : Nov 14, 2023 |

Number

Description

1

System LEDs

2

RST button

3

Console port

4

Service port

5

Compact flash slot

6

ETR (Emergency Transfer Relay) port

7

CCA (Contact Closure) port

8

ETH WAN port

9

ETH LAN ports

10

RST button

11

ASB button

12

V1 — slot for standard media module or S8300E Server

13

V2 — standard media module slot

14

V3 — standard media module slot

15

V4 — standard media module slot

16

V5 — slot for standard media module or S8300E Server

17

V6 — standard media module slot

18

V7 — standard media module slot

19

V8 — standard media module slot
