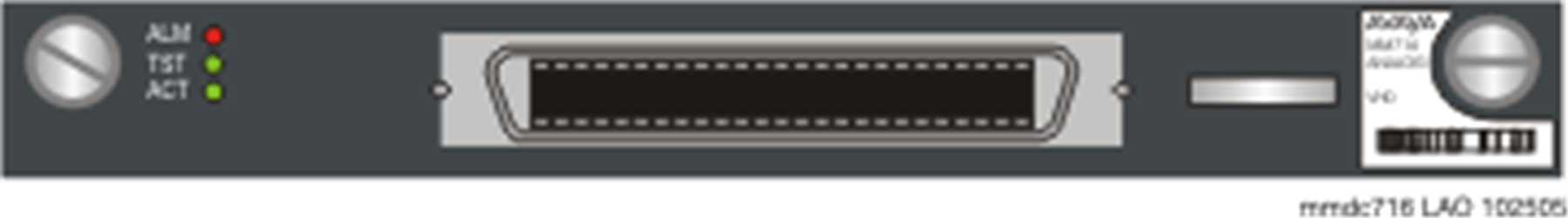

The MM716 provides 24 analog ports supporting telephones, modem, and fax. These ports can also be configured as DID trunks with either wink-start or immediate-start. The 24 ports are provided through a 25 pair RJ21X amphenol connector, which can be connected by an amphenol cable to a breakout box or punch down block.

The MM716 provides the capability to configure any of the 24 ports as:

• Analog tip/ring devices such as single-line telephones with or without LED message waiting indication

• A wink-start or an immediate-start DID trunk

The MM716 Analog Media Module also supports:

• Three ringer loads, which is the ringer equivalency number, for all ports, for the following loop lengths:

  • 20,000 feet (6096 meters) over 0.65 mm (.025 in.) wire (22 AWG)

  • 16,000 feet (4877 meters) over 0.5 mm (.02 in.) wire (24 AWG)

  • 10,000 feet (3048 meters) over 0.4 mm (.016 in.) wire (26 AWG)

  At .1 or less REN ringer loads, the supported loop length is 20,000 feet (6096 meters) at 22, 24, and 26 AWG.

• Up to 24 ringing simultaneously ports

• Type 1 caller ID

• Ring voltage generation for a variety of international frequencies and cadences

The MM716 is compatible with Avaya Communication Manager Release 3.1 and later and branch gateway firmware version 25.0.0 and later.
