ASP 110 (Dell R660XS) active network ports

Last Updated : Jul 24, 2025 |
Prolog information
Plug network cables into the SFP28/SFP+ ports (using the appropriate cable and module for your network) labeled as 1 and 2 in the diagram. If out of band management is to be enabled, the first two built-in ports (3 and 4 in the diagram) at the bottom can be connected.

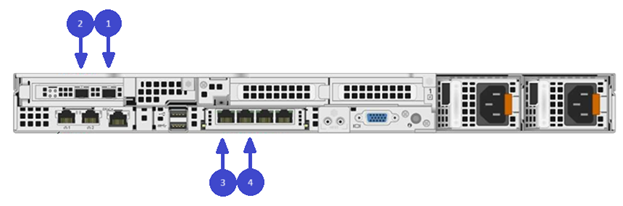

Figure: Active Network Ports for ASP 110 (Dell R660XS)
