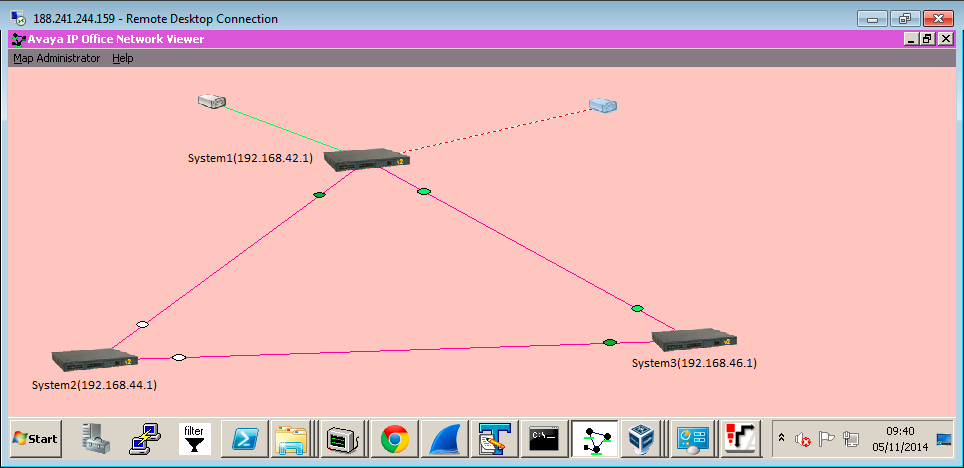

The Network Viewer within System Monitor shows the IP Office lines between systems in a visual format. It also indicates the status of the lines.

Network view is currently not supported when using TCP, HTTP or HTTPS to connect System Monitor to the system.

The viewer indicates the status of each link by changing the color of the status dot next to the system hosting the line.

• Red = Link Down (non-resilient link)

• Light Green = Link Up (non-resilient link)

• White = Link Up (Resilient slave - "I provide Backup and I do not request Backup")

• Yellow = Link down (Resilient slave - "I am actively providing Backup")

• Dark Green = Link up (Resilient master )

• Orange = Link down - pending (Resilient slave)
