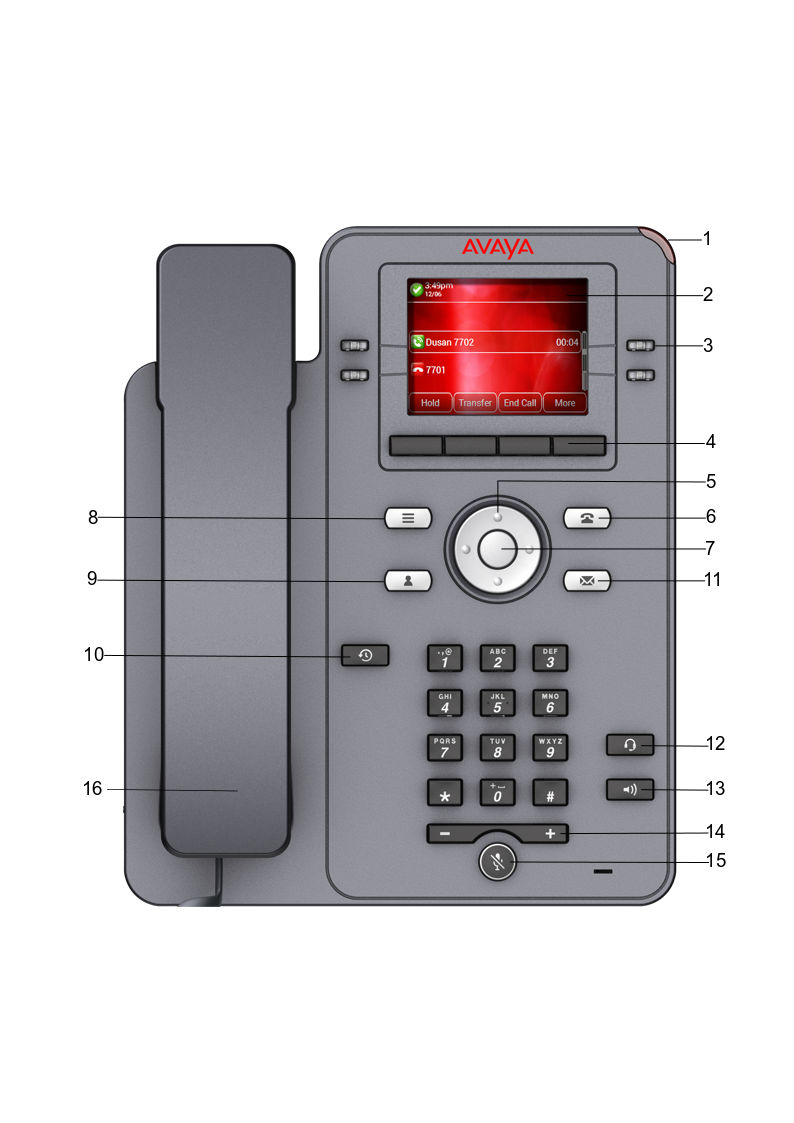

Physical layout of a J139 IP Phone

Last Updated : Oct 04, 2024 |
Prolog information
Metadata
Keywords:
No.
Name
Description
1
Beacon LED
Provides visual alerts for the following:
  • Incoming call
  • Voice mail
2
Phone display
Displays two areas:
  1. Top Bar: It is always visible, displays communication and device status, and time and date.
  2. Application area displays the following:
    • Application header: It displays the context specific application title, and one or more subtitles. Depending on the appearance type and the call state, the header displays details of the call.
    • Application content area: it displays menus, lists, pop-up windows, images, or other application content.
    • Softkey labels area: it displays labels with information about the state of the Soft Key buttons.
3
Line Keys
Used to select the corresponding rows. Each line key has a LED that displays the following visual alerts:
  • Red light: disabled features.
  • Green light: incoming call and enabled features.
  • Red and green light: phone is off-hook.
4
Softkeys
Used to select the corresponding label of context-specific actions.
5, 7
Navigation cluster
Used to navigate on the Phone screen.
  • Up and Down arrow keys: to scroll up and down.
  • Right and Left arrow keys: to move cursor in the text input field, and to toggle values in the selection fields.
  • OK button: to select the action assigned to the first soft key.
11
Voicemail
Used to dial the configured voice mail number to receive a voice message.
12
Headset
Used to toggle your call from the speaker to headset.
13
Speaker
Used to turn on the speaker.
14
Volume
Used to adjust volume of a handset, a speaker, or a ringtone.
  • (+): To increase the volume.
  • (-): To decrease the volume.
15
Mute Button
Used to mute and unmute the outgoing audio.
16
Handset
Used to receive and make calls
Application keys provide direct access to the corresponding applications:
No.
Application keys
Description
6
Phone key
Displays the Phone screen.
8
Main menu
Displays the list of options, such as Features, Applications, Settings, Network information, Administration, and About.
9
Contacts
Displays the entries in your Contacts list.
10
Recents
Displays call history list.
