Wideband Switching video application example

Last Updated : Dec 01, 2022 |
Prolog information
Metadata
Keywords:
A typical video application uses an ISDN-PRI interface to DS0 1 through 6 of the line-side facility. The figure shows an example.

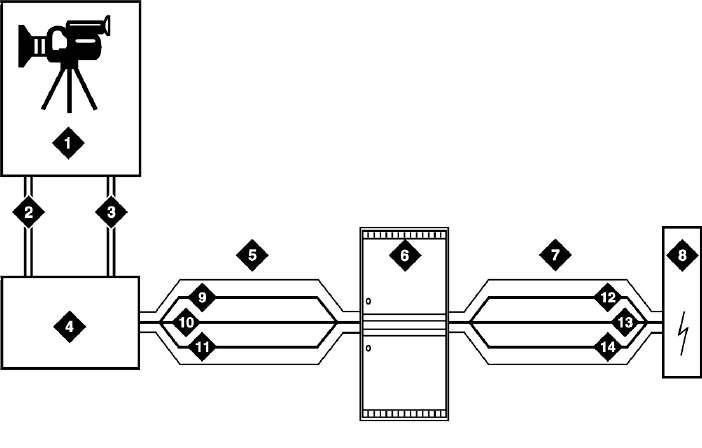

Figure: Typical video broadband application
Figure notes:
  1. Video application
  2. Port 1
  3. Port 2
  4. ISDN terminal adaptor
  5. Line-side ISDN-PRI
  6. Avaya Server
  7. ISDN or ATM-CES trunk
  8. Network
  9. DS0 24 D-channel
  10. DS0 23 unused
  11. DS0 1-6 wideband
  12. DS0 24 D-channel
  13. DS0 7-23 narrow bands
  14. DS0 1-6 wideband
