B179 user settings

Last Updated : Aug 22, 2013 |

B179 users can be created manually using | User or automatically created during device registration. Even if auto-created, the user settings created in the IP Office configuration should be checked during installation.

This section looks at the key IP Office configuration settings that affect SIP extension devices. For full details of all the fields shown, refer to the “IP Office Manager Manual.”

Procedure

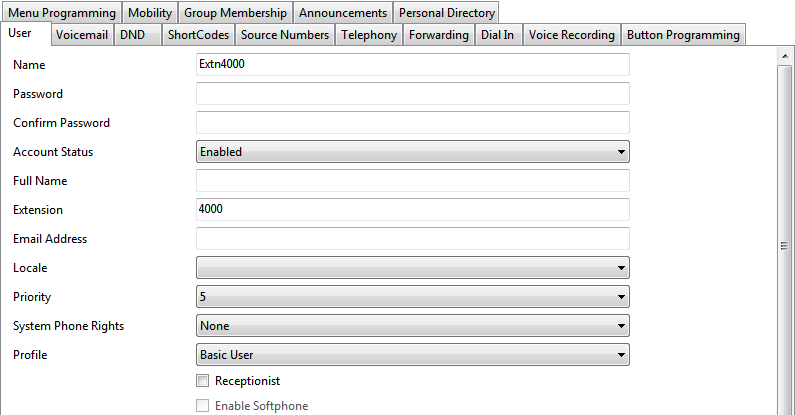

  1. Select User, locate the B179 extension user, and select the User tab.




    • Name

      If the SIP extension is set to Force Authorization (the default). This field is used as the Authorization Name that must be set in the B179 device's configuration.

    • Extension

      This should match the SIP ID of the B179 device and the Base Extension setting in IP Office.

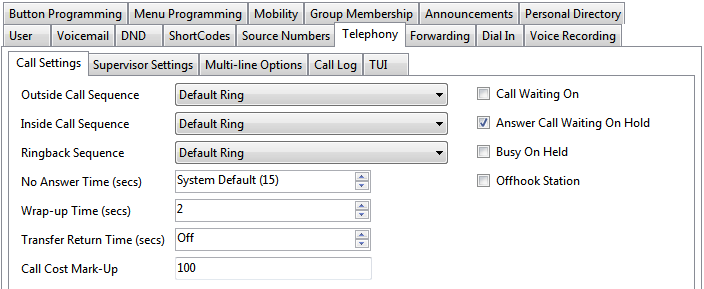

  2. Select the Telephony | Call Settings tab.




    • Call Waiting On

      This setting must be enabled in order to allow features such as transferring calls.

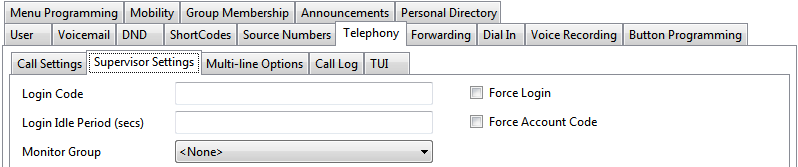

  3. Select the Telephony | Supervisor Settings tab.




    • Login Code

      If the SIP extension is set to Force Authorization (the default), this field is used as the Authorization Password that must be set in the B179 device's configuration.
