Simple VPN topology – VPN hub and spokes

Last Updated : Jul 20, 2020 |
Prolog information
Metadata
Keywords:

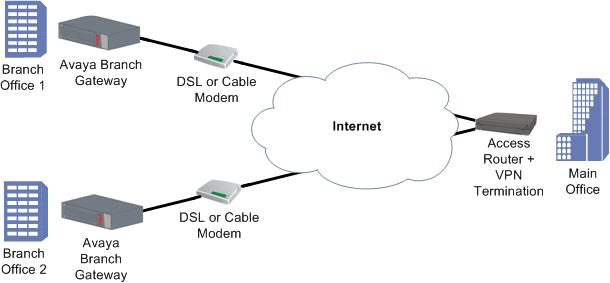

The simple VPN topology consists of several VPN spokes (branch offices) connected via the Internet to the VPN hub (Main Office).
In this topology:
  • The Broadband Internet connection uses cable or DSL modem, with a static public IP address
  • There is a VPN tunnel from each spoke to the VPN hub over the Internet
  • Only VPN traffic is allowed via the Internet connection
