Avaya IP Office Platform Guidelines Capacity
Capacity Planning Beyond 3000 Users

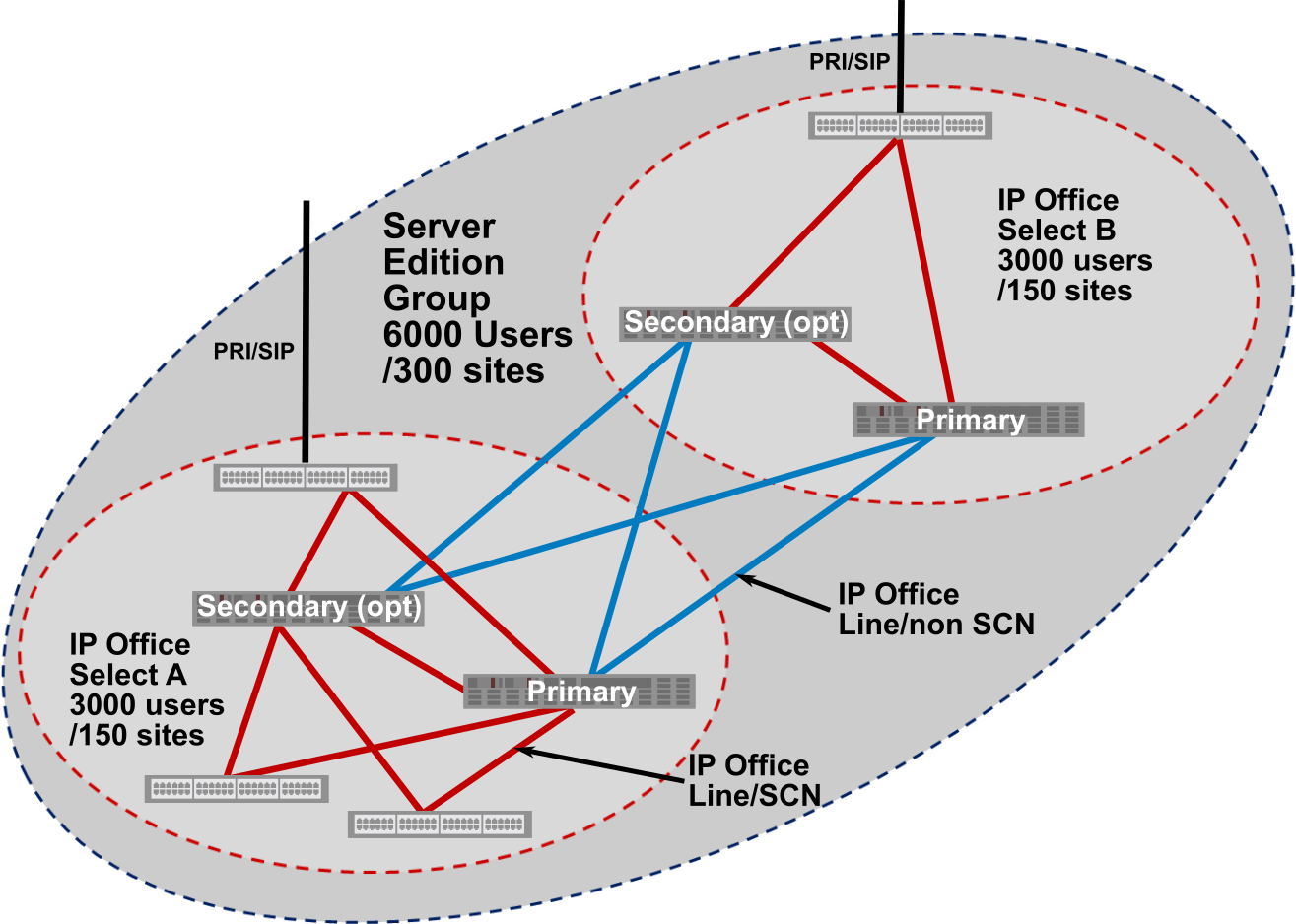

To provide a cost effective solution of more than 3000 users or 150 sites to larger customers, two IP Office Select systems may be linked together to support a total of 6000 users/extensions:
This construct may also be used when other per-solution capacities are exceeded, for example Avaya one-X® Portal users, hunt groups or Voicemail/recording channels.
You can create a group by linking two separate IP Office Select systems via IP Office lines to provide a single system view to users.
Each IP Office Server Edition system has its own Primary and Applications, and optional Secondary Server and Expansion Systems; each IP Office Server Edition system needs to be managed separately. The systems are set up through configuration to share a common dial plan and directory.
Feature |
IP Office Select |
Grouped SE |
Comment |
|---|---|---|---|
Maximum Users/Extensions |
3000 |
6000 |
3000 per system |
Directory |
Single Directory |
Common directory with manual synchronization between the two systems |
Can use auto synchronization for system directory |
Directory Size |
10000 |
10000 |
– |
Dial Plan |
Single dial plan |
Single dial plan |
For example, 21xxxx is on A and 22xxxx is on B |
Trunk Sharing across nodes |
Yes |
Yes |
Requires additional ARS and ICR setup |
Dial by name |
Yes |
Yes |
Requires common directory |
Hold/Transfer |
Yes |
Yes |
– |
Internal dialing and calling user name |
Yes |
Yes |
– |
Direct Media |
Yes |
Yes |
– |
Busy and Presence Indicators |
System Wide |
Limited to local SE |
– |
Hot Desking |
System Wide |
Limited to local SE |
Partial resolution with multiple accounts |
Hunt Groups |
Fully Networked |
Partially Networked |
Hunt groups are limited to one SE system but can be linked between systems |
Music On Hold |
4 per node, either local or from Primary |
4 per node, either local or from local Primary |
Cannot stream MOH from other Primary |
SMDR |
Single stream per node |
Single stream per node |
– |
Voicemail |
Single/Dual |
Single/Dual VM per SE |
– |
Avaya one-X® Portal |
Single |
Single one-X server per SE |
– |
SCN telephony features |
System Wide |
Limited to local SE |
– |
