Using IP Office System Monitor
one-X Portal Server and Client Ports
Ingress
|
Port (Range)
|
Protocol
|
Switchable
|
External Device
|
Description
|
|---|---|---|---|---|
|
4560
|
TCP/Log4j
|
No
|
Log4j appender
|
-
|
|
5222
|
TCP/XMPP
|
Yes
|
XMPP client
|
Instant message clients
|
|
5269
|
TCP/XMPP
|
Yes
|
XMPP federation
|
Instant message federation
|
|
7171
|
TCP/BOSH
|
Yes
|
OpenFire for BOSH
|
-
|
|
7443
|
TCP/BOSH
|
Yes
|
OpenFire for BOSH
|
-
|
|
8005
|
TCP/Tomcat shutdown
|
No
|
Tomcat shutdown listener
|
-
|
|
8080
|
TCP/HTTP
|
Yes
|
Web Client
|
one-X Portal
|
|
8666
|
TCP/JMX
|
Yes
|
Java extension
|
-
|
|
9092
|
TCP/JDBC
|
No
|
Database client listener
|
-
|
|
9443
|
TCP/HTTPS
|
Yes
|
Web Client, Media Manager client, WebRTC client
|
one-X Portal secure/ Media Manager/ WebRTC Gateway
|
|
5433
|
TCP/JDBC
|
No
|
one-X Portal
|
Geo-redundant one-X Portal server database sync.
|
|
61615
|
TCP/Proprietary
|
No
|
one-X Portal
|
Geo-redundant one-X Portal server database sync.
|
Egress
|
Port (Range)
|
Protocol
|
Switchable
|
External Device
|
Description
|
|---|---|---|---|---|
|
80/8000
|
TCP/HTTP
|
Yes
|
Voicemail Pro
|
Voicemail Pro communication with one-X Portal
|
|
50791
|
TCP/Voicemail
|
yes
|
Voicemail Pro
|
Voicemail Pro communication with one-X Portal
|
|
50814 (49152-65280)
|
TCP/Proprietary
|
Yes
|
IP Office
|
IP Office CTI control for one-X Portal
|
|
50815
|
TCP/TLS
|
No
|
IP Office
|
|
|
5433
|
TCP/JDBC
|
No
|
one-X Portal
|
Geo-redundant one-X Portal server database sync.
|
|
61615
|
TCP/Proprietary
|
No
|
one-X Portal
|
Geo-redundant portal server status sync.
|
Intra-Device
|
Port (Range)
|
Protocol
|
Switchable
|
External Device
|
Description
|
|---|---|---|---|---|
|
8086
|
TCP/HTTP
|
No
|
XMPP
|
Internal REST interface
|
|
8667
|
TCP
|
Yes
|
one-X Portal (Openfire)
|
Used by XMPP service for JMX connection.
|

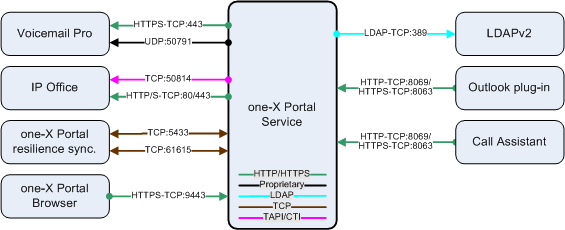

Schematic
