Using IP Office System Monitor
Small Community Networking

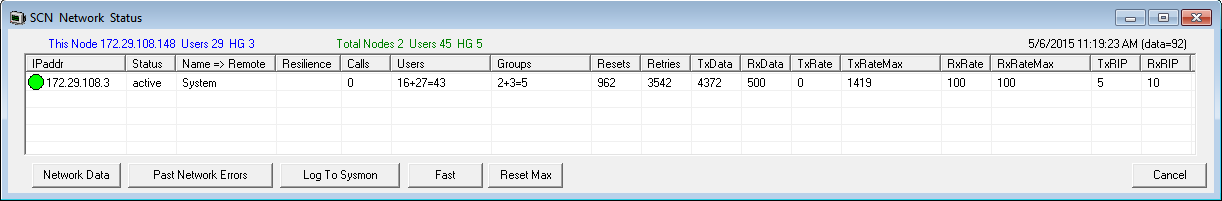

This menu displays the status of the system's multi-site network connections.
|
Network Data
|
Display a summary of the known details of the other network nodes.
|
|
Past Network Errors
|
|
|
Log To Sysmon
|
When selected, the menu information is added to the Syslog Monitor output every 5 seconds. The button changes to Stop Log and is used to stop the logging output. A comma separated row is added to the log output for each SCN link.
|
|
Fast
|
When selected, it changes the menu update rate from every 8 seconds to every second.
|
|
Slow
|
When selected, it changes the menu update rate from every second to every 8 seconds
|
|
Reset Max
|
The TxRateMax and RxRateMax columns show the maximum values whilst the menu is running. This button resets the values.
|
