Standard Local Survivability data sources and communication paths

Last Updated : Mar 25, 2020 |

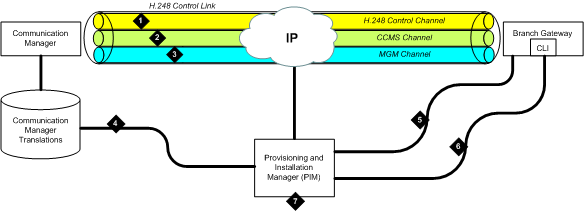

Table 1: Figure notes:

  1. 248 call signaling and configuration data

  2. CCMS messages through Clear Channel

  3. Branch Gateway Maintenance Channel

  4. SLS MIB delivered to the Branch Gateway through SNMP

  5. Security codes (passwords) sent over SSH connection to CLI

NOTE: The SLS data must be configured manually in the Branch Gateway.

The required CM translations for SLS include fields on the Station and Branch Gateway screens.
