Dell R640 Avaya Solutions Platform 110 Appliance front view

Last Updated : Jul 22, 2020 |
Prolog information
Metadata
Keywords:

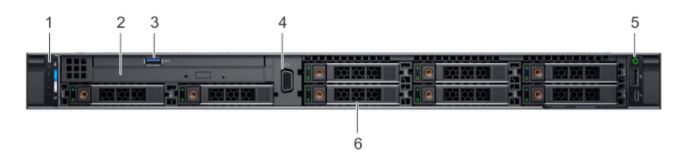

The image displays the front view of the R640 server
Callout
Item
Icon
Description
1
Left control panel
NA
Displays the system health, system ID, and status LED indicators.
  • Status LED: Enables you to identify failed hardware components. There are up to five status LEDs and an overall system health LED (Chassis health and system ID) bar.
2
Optical drive
NA
One slim SATA DVD-ROM drive.
Note:
DVD devices are data only.
3
USB port
The USB port is USB 3.0 compliant.
4
VGA port
Enables you to connect a display device to the system.
5
Right control panel
NA
Contains the power button, USB port, iDRAC Direct micro port, and the iDRAC Direct status LED.
6
Drive slots
NA
Enable you to install hard drives that are supported on your system.
