Modifying reservations on Application Enablement Services

Last Updated : Nov 24, 2023 |

The following procedure modifies reservations on Application Enablement Services.

Procedure

  1. Deploy the Application Enablement Services OVA.
  2. Before booting the virtual machine, reduce reservations:
    1. Right-click the Application Enablement Services virtual machine and select Edit Settings.
    2. In the Settings window, select the Hardware tab.
    3. In the left pane, under Hardware, select Memory.

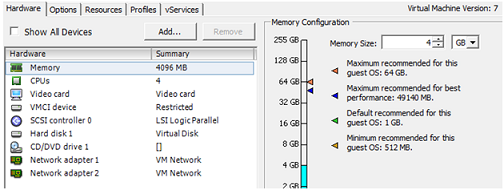

      Image of memory configuration screen
    4. In the right pane, change the Memory Size value from the existing value to the required value.
    5. In the left pane, select CPUs.
    6. In the right pane, adjust the Number of virtual sockets from the existing value to the required value.

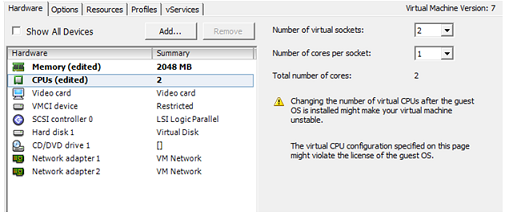

      Image of CPUs selected and number of virtual sockets fields
    7. At the top of the Settings window, select the Resources tab.

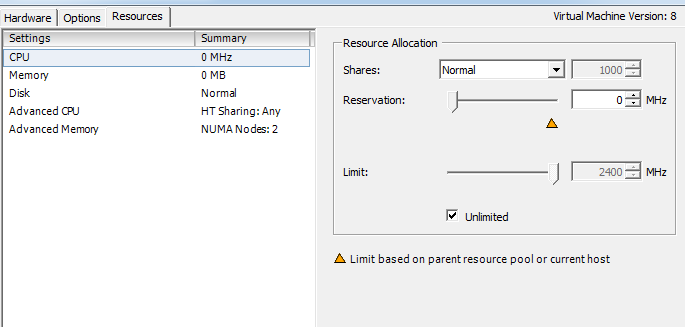

      Image of Hardware tab screen with CPU selected
    8. In the left pane, select CPU.
    9. In the right pane, click in the MHz box and change the number from the existing value to the required value.
    10. in the left pane, select Memory.
    11. In the right pane, click in the MB box and change the number from the existing value to the required value.

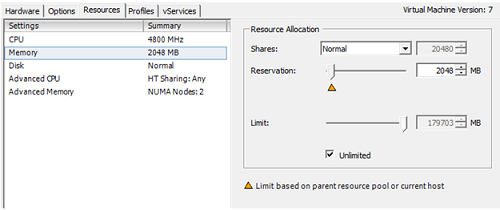

      Image of Hardware tab screen with Memory selected
    12. Click OK to exit the window.
  3. Boot the Application Enablement Services virtual machine.
