Shuffling between different network regions

Last Updated : Jul 20, 2023 |

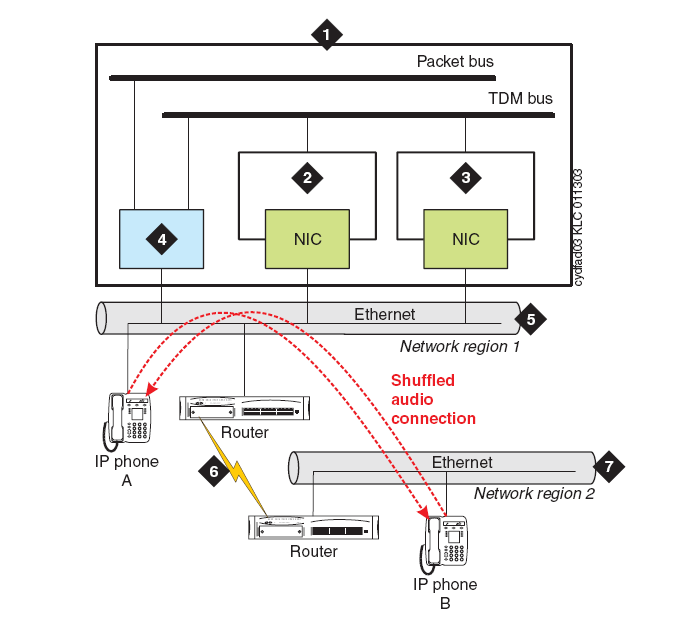

Figure : 1. Shuffled audio connection between IP endpoints in different network regions




Number

Description

1

Avaya server

2

G4xx Media Gateway and Avaya Aura® Media Server

3

G4xx Media Gateway and Avaya Aura® Media Server

4

PROCR

5

LAN/WAN segment administered in Communication Manager as network region 1

6

IP voice packet path between LAN routers

7

LAN/WAN segment administered in Communication Manager as network region 2

Figure : 1 is a schematic of a shuffled audio connection between two IP endpoints that are in different network regions that are interconnected. The internetwork region connection management rules are met for these different network regions. After the call is shuffled, both Media Processors are bypassed, making those resources available to serve other media connections. The voice packets from IP endpoints flow directly between LAN routers.
