Shuffling within the same network region

Last Updated : Jul 20, 2023 |

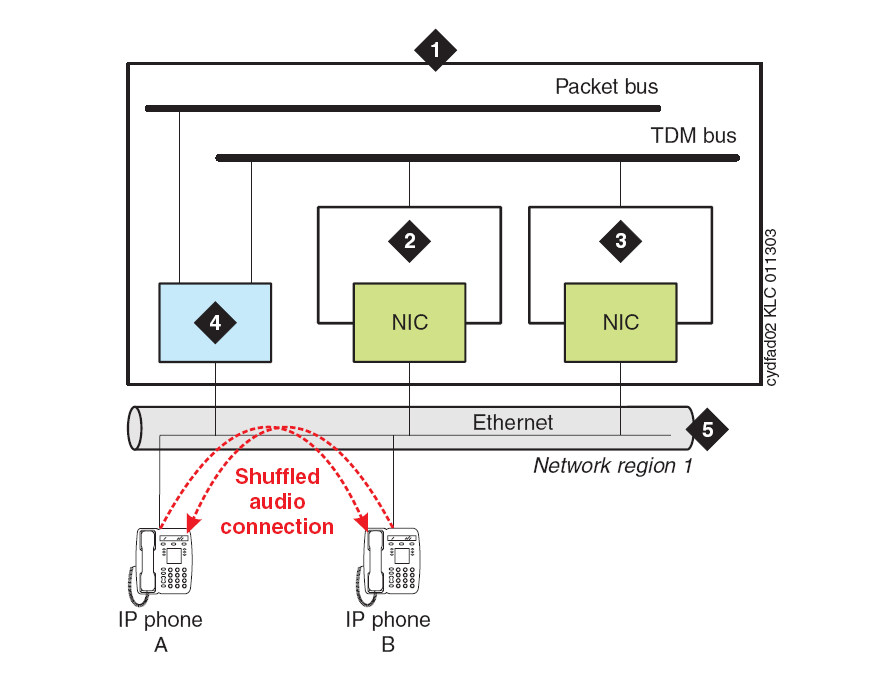

Figure : 1. Shuffled audio connection between IP endpoints in the same network region




Number

Description

1

Avaya server

2

G4xx Media Gateway

3

G4xx Media Gateway and Avaya Aura® Media Server

4

PROCR

5

LAN/WAN segment administered in Communication Manager as network region 1

Shuffling within the same network region is a schematic of a shuffled connection between two IP endpoints within the same network region. After the call is shuffled, the IP Media Processors are out of the audio connection and free to serve other media connections.
