Obtaining existing VMware details

Last Updated : Jun 10, 2026 |

About this task

Obtain the configuration details of VMware and use them for ASP R6.0.x (KVM on RHEL 8.10).

For module-specific details, see Obtaining Communication Manager input configuration details for migration.

Use this procedure to obtain the network IP interface details.

Procedure

  1. Log in to ESXi CLI, run the following commands:

    • # esxcli network ip interface ipv4 get: note down IPv4 network IP interface details.

    • # esxcli network ip interface ipv6 get: note down IPv6 network IP interface details.

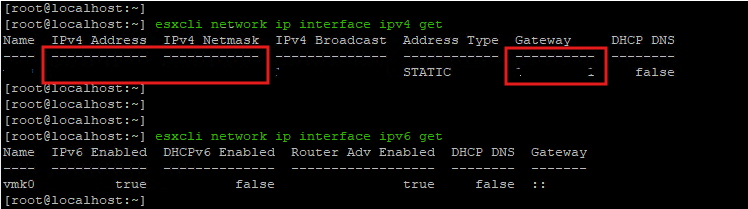

    Network IP interface of VMware
  2. Login to ESXi vSphere or vCenter and note down the VMware License serial number.
