Deploying IP Office as an Avaya Cloud Office ATA Gateway
Call flow schematics
The following schematics show the call flow and configuration with the IP Office for calls to/from Avaya Cloud Office™.

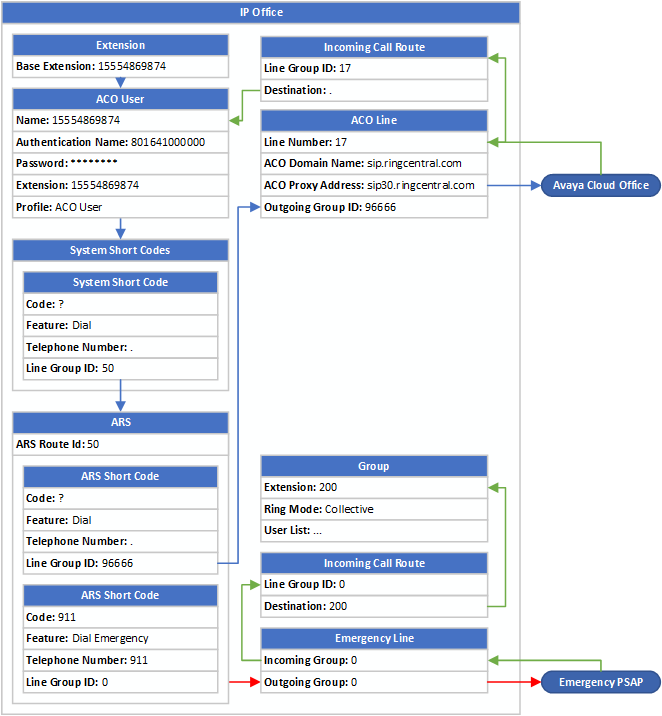

Call flow using a local emergency line
This schematic shows a simplified example of the IP Office call flow for calls to/from the Avaya Cloud Office™when using a local IP Office line for emergency calls.

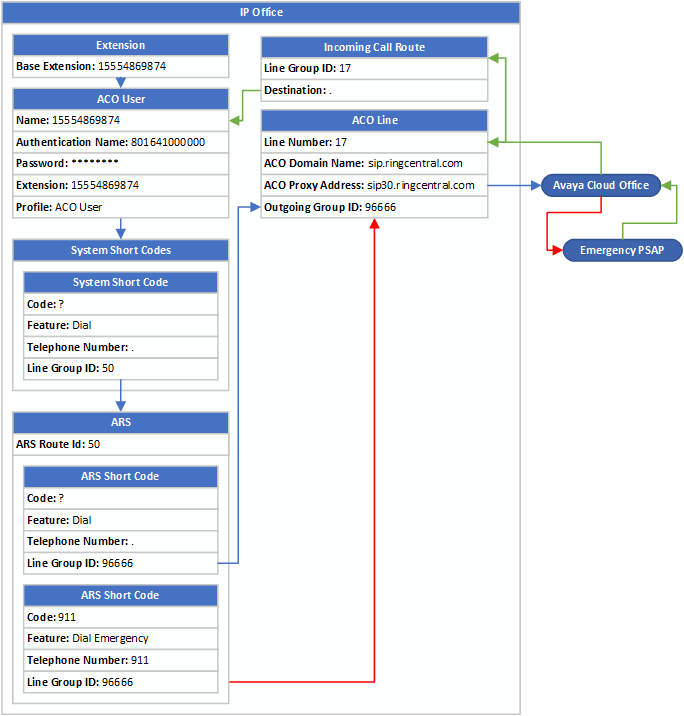

Call flow using the ACO E911 emergency service
This schematic shows a simplified example of the IP Office call flow for calls to/from the Avaya Cloud Office™when using the ACO E911 emergency service for emergency calls.
