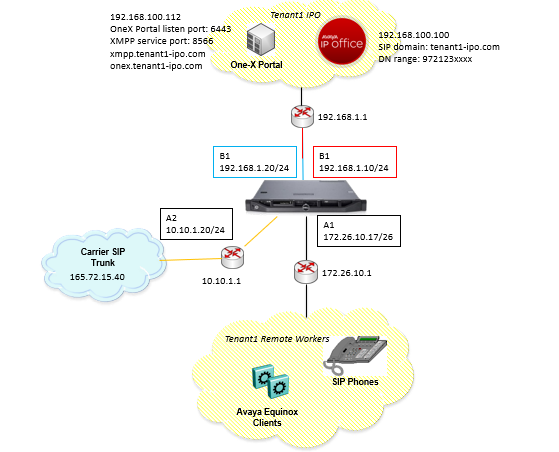

You can configure Avaya SBC to support multi-tenancy in a Powered by IP Office deployment. You can see the schematic representations of configuration for Tenant 1 and Tenant 2 on the figures below. Each tenant in this example consists of a set of remote workers and a corresponding set of IP Office components.

The example also includes a carrier SIP trunk to support PSTN access.

On the Avaya SBC, the system uses the same IP addresses and interfaces to support each tenant.

In this example, Avaya one-X® Portal, and IPO servers are using different IP addresses for clarity. Also, Avaya SBC licensing is configured once and applied to all tenants.
