Avaya Experience Platform™ (On-Prem + Connect) with Avaya Session Border Controller for Enterprise

Last Updated : Oct 16, 2024 |
Prolog information
Metadata
Keywords:

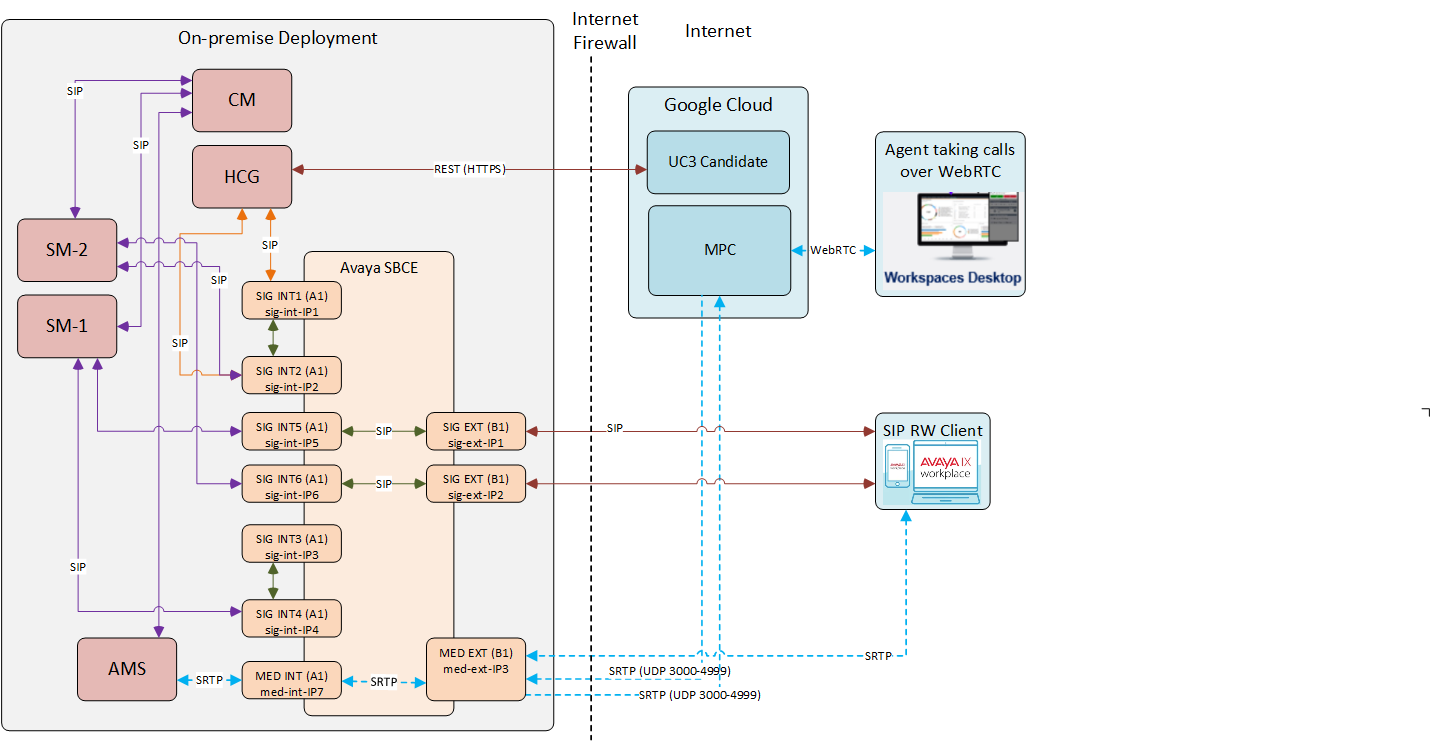

The image displays the following:
  • Integration with Avaya Hybrid Cloud Gateway (HCG) through the A1 interface and remote worker through the B1 interface.
  • Avaya SBCE uses seven A1 side IP addresses and three B1 side IP addresses.
  • HCG communicates with Avaya SBCE A1 sig-int-IP1, which forwards the traffic to A1 sig-int-IP2, and the traffic is sent to SM-1.
  • HCG communicates with Avaya SBCE A1 sig-int-IP3, which forwards the traffic to A1 sig-int-IP4, and the traffic is sent to SM-2.
  • Avaya SBCE sends media from the on-premise AMS over med-int-IP7 to med-ext-IP3 (B1), which is then sent to MPC.
