Using IP Office System Monitor

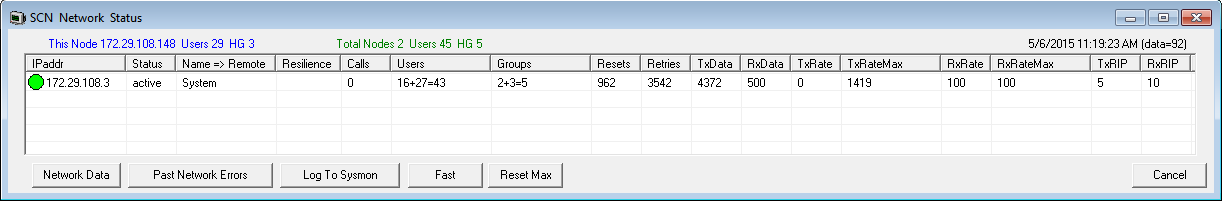

Small Community Networking
This menu displays the status of the system's multi-site network connections.
Network Data |
Display a summary of the known details of the other network nodes. |
Past Network Errors |
|
Log To Sysmon |
When selected, the menu information is added to the Syslog Monitor output every 5 seconds. The button changes to Stop Log and is used to stop the logging output. A comma separated row is added to the log output for each SCN link. |
Fast |
When selected, it changes the menu update rate from every 8 seconds to every second. |
Slow |
When selected, it changes the menu update rate from every second to every 8 seconds |
Reset Max |
The TxRateMax and RxRateMax columns show the maximum values whilst the menu is running. This button resets the values. |
