Avaya CMS Supervisor Report Designer
Legend tab
Use the Legend tab to control the location of the chart legend.

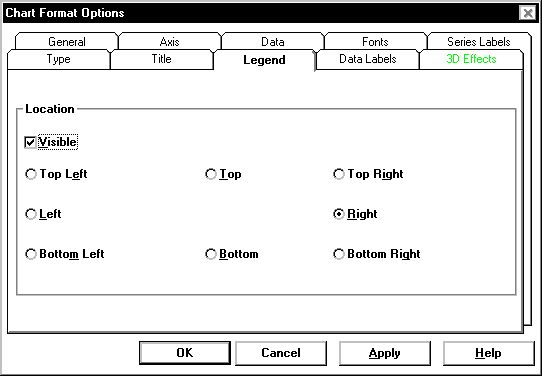

Example
Legend tab options
The available options on the Legend tab are as follows:
Name |
Description |
|---|---|
Visible check box |
Allows you to display or not to display the report legends. |
Location of legend |
If you elect to have report legends visible, you can select where the legend is displayed. The available options are Top Left, Top (center), Top Right, Left, Right, Bottom Left, Bottom (center), and Bottom Right. |
Since legends take up space, the drawn chart will be smaller if you have selected the Visible check box. To increase the size of the chart, do not select the Visible check box or maximize the report window.
