Using IP Office System Status
Call Disconnected by Internal User

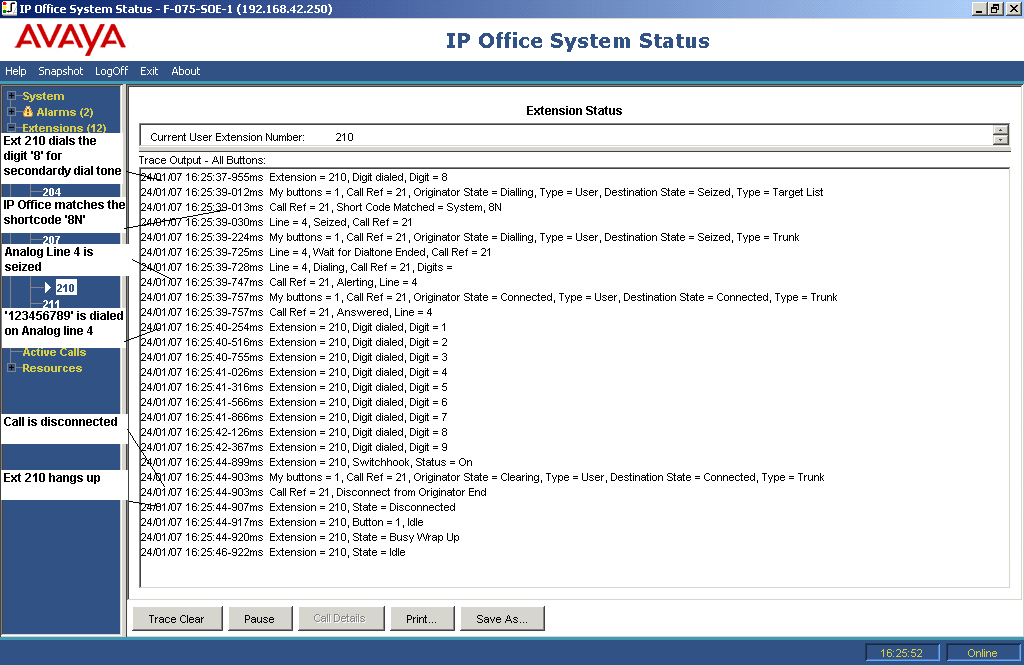

The following example shows an extension dialling out on an analog trunk:
-
Extension 210 dials 8123456789.
-
The trace shows Extension = 210, Digit dialed, digit = 8.
-
The system matches the dialed 8, to the system short code 8N.
-
The trace shows that the system seized analog line 4 and dialed 123456789 on the line.
-
The trace shows that extension 210 goes back on hook.
-
The system disconnects the call.
Note:
-
Analog lines do not provide call progress signalling. Therefore, they go directly from the 'seized' to the 'connected' state.
-
The trace will not show the digits dialed on an analog trunk after short code matching, if the pause between digits dialed exceeds an 'inter-digit' timeout.
