NIC assignment mapping

Last Updated : Jan 28, 2026 |

Following the migration of an ASP Dell R640 running on ESXi to ASP 130 R6.0.x, there is a change in the NIC port naming convention. The ports previously labeled as vmnic0-3 on the 4-port motherboard NIC and vmnic4-5 on the 2-port PCIe NIC are renamed to eno1-4 on the motherboard. The port names for ports 5 and 6 vary depending on the specific configuration within the ASP R6.0.x hypervisor environment.

This section outlines the NIC assignment configuration for the supported Dell servers in the Avaya Solutions Platform (ASP) Release R6.x, operating with KVM on RHEL 8.10, along with its various profile configurations.

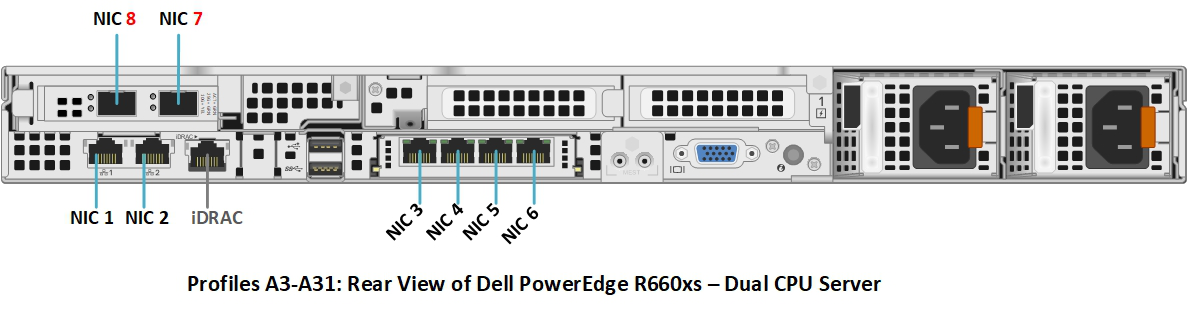

R660xs A3-A31Current Configuration (H755)





Avaya KVM on RHEL 8.10 to R660xs NIC mapping for A3 and A31

R660xs NIC assignment

RHEL eth name

Comments

NIC 1

eno8303

LOM – NIC order left to right

NIC 2

eno8403

LOM – Services – NIC order left to right

NIC 3

eno12399

1st OCP port – NIC order left to right

NIC 4

eno12409

2nd OCP port – NIC order left to right

NIC 5

eno12419

3rd OCP port – NIC order left to right

NIC 6

eno12429

4th OCP port – NIC order left to right

*NIC 7

ens1f0np0

10/25GbE in A3 and A31 systems NIC order is right to left

*NIC 8

ens1f1np1

10/25GbE in A3 and A31 systems. NIC order is right to left

*Available for use beginning with ASP R6.0.0.4.0 and with BIOS/FW v2 or later.

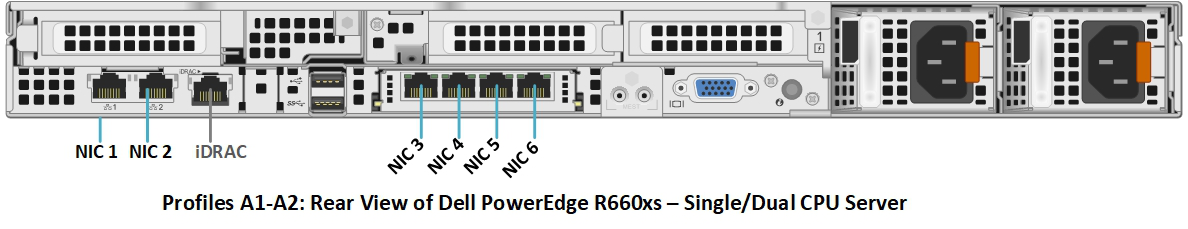

R660xs A1-A2 current configuration (H755)





Avaya KVM on RHEL 8.10 to R660xs NIC mapping for A1 and A2

R660xs NIC assignment

RHEL eth name

Comments

NIC 1

eno8303

LOM – NIC order left to right

NIC 2

eno8403

LOM – Services NIC order left to right

NIC 3

eno12399

1st OCP port – NIC order left to right

NIC 4

eno12409

2nd OCP port – NIC order left to right

NIC 5

eno12419

3rd OCP port – NIC order left to right

NIC 6

eno12429

4th OCP port – NIC order left to right

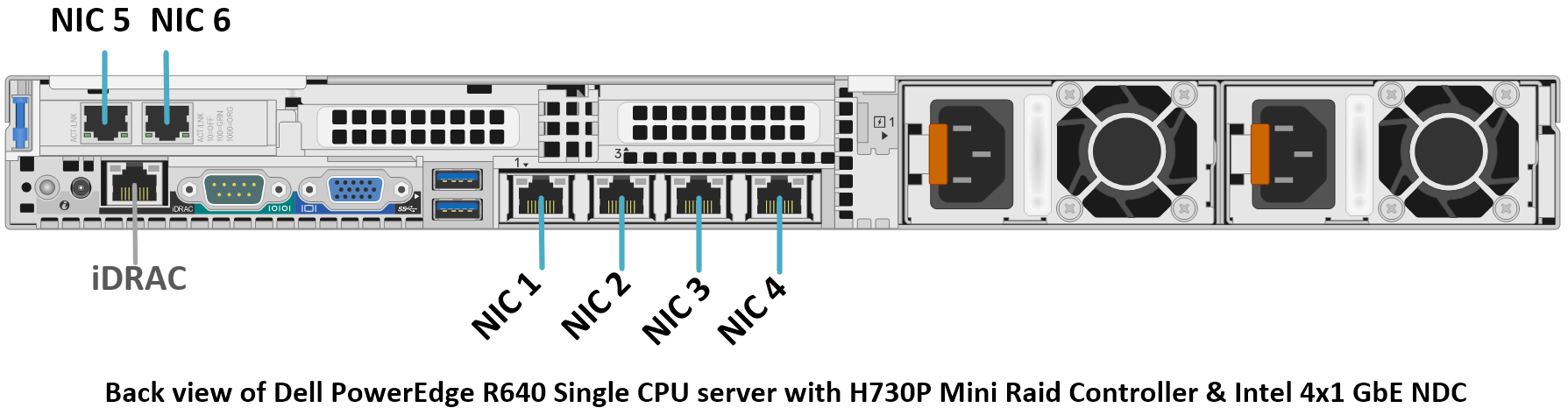

R640 P2/P4 Single CPU Configuration (H730P)





Avaya KVM on RHEL 8.10 to R640 NIC mapping for P2, P4 - H730P - Intel NDC/Broadcom NIC

R640 NIC assignment

RHEL eth name

Comments

NIC 1

eno1

NDC order left to right

NIC 2

eno2

NDC – Services NIC order left to right

NIC 3

eno3

NDC – order left to right

NIC 4

eno4

NDC – order left to right

NIC 5

ens1f0

Broadcom NIC order left to right

NIC 6

ens1f1

Broadcom NIC order left to right

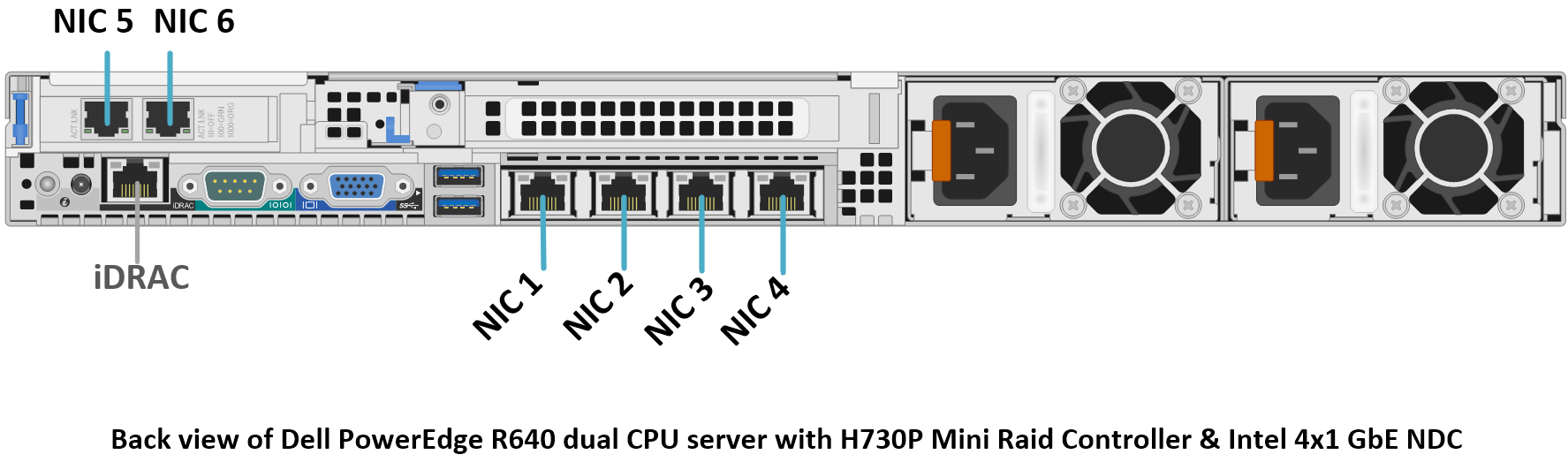

R640 P3/P5/P51 Dual CPU Configuration (H730P)





Avaya KVM on RHEL 8.10 to R640 NIC mapping for P3, P5, 51 - H730 - Intel NDC/Broadcom NIC

R640 NIC assignment

RHEL eth name

Comments

NIC 1

eno1

NDC order left to right

NIC 2

eno2

NDC – Services NIC order left to right

NIC 3

eno3

NDC – order left to right

NIC 4

eno4

NCD – order left to right

NIC 5

ens1f0

Broadcom NIC order left to right

NIC 6

ens1f1

Broadcom NIC order left to right

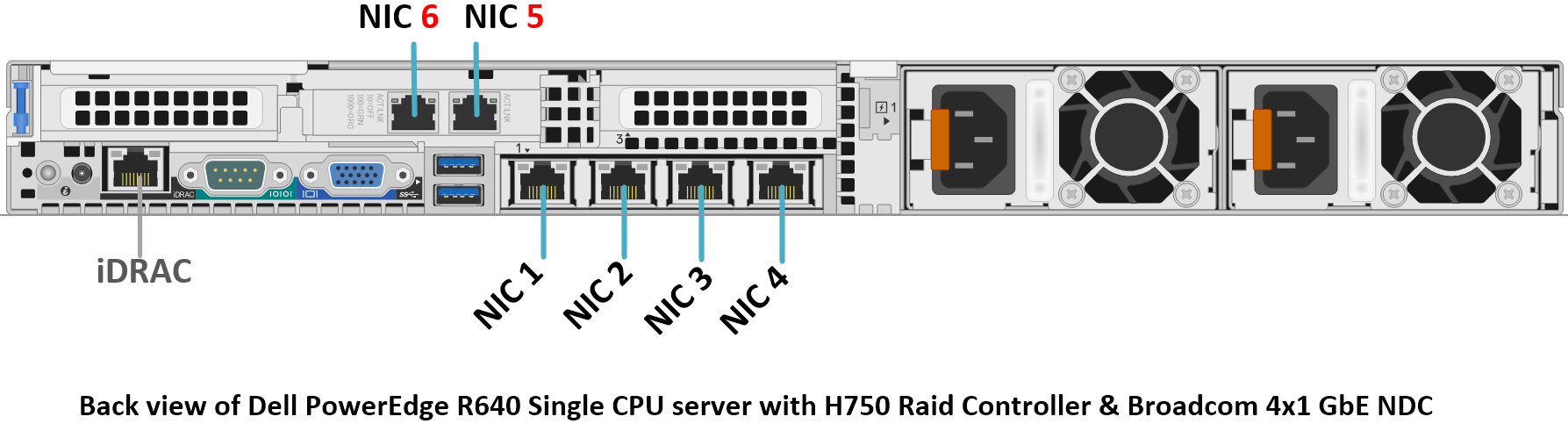

R640 P2/P4 single CPU Configuration (H750)





Avaya KVM on RHEL 8.10 to R640 NIC mapping for P2, P4 - H750 – Broadcom NDC/Broadcom NIC

R640 NIC assignment

RHEL eth Name

Comments

NIC 1

eno1

NDC order left to right

NIC 2

eno2

NDC – Services NIC order left to right

NIC 3

eno3

NDC – order left to right

NIC 4

eno4

NCD – order left to right

NIC 5

ens2f0

Broadcom NIC order right to left

NIC 6

ens2f1

Broadcom NIC order right to left

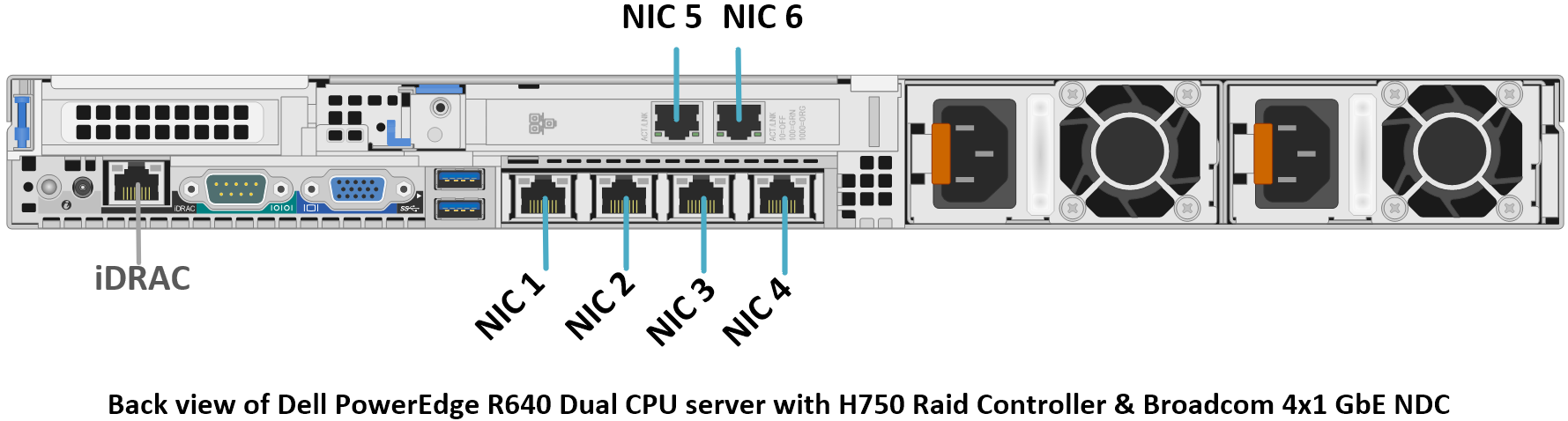

R640 P3/P5/P51 Dual CPU Configuration (H750)





Avaya KVM on RHEL 8.10 to R640 NIC mapping for P3, P5, 51 – H750 – Broadcom NDC/Broadcom NIC

R660xs NIC assignment

RHEL eth name

Comments

NIC 1

eno1

NDC order left to right

NIC 2

eno2

NDC – Services NIC order left to right

NIC 3

eno3

NDC – order left to right

NIC 4

eno4

NCD – order left to right

NIC 5

enp216s0f0

Broadcom NIC order left to right

NIC 6

enp216s0f1

Broadcom NIC order left to right
