Using iDRAC9 for debugging

Last Updated : Aug 07, 2025 |

Procedure

  1. Connect to the iDRAC9 through the administered iDRAC network connection or the iDRAC9 direct connect interface using micro USB.
  2. Log into the iDRAC9 with credentials previously administered. If the iDRAC9 has not been administered, then only the iDRAC9 direct connect will be available: Login is root and the password is located on the underneath side of the server pull out toe tag.

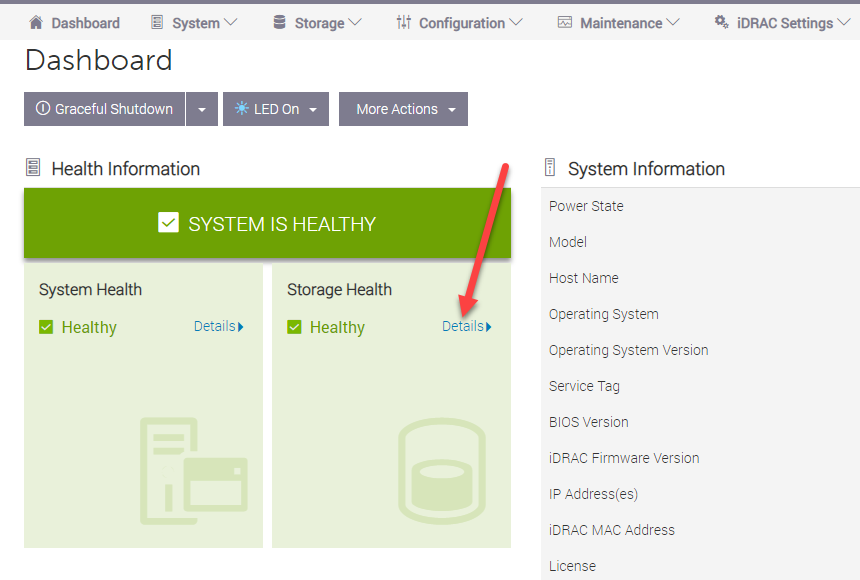

  3. After logging into the iDRAC, view the dashboard and its Storage Health. Select Details. If Storage Health Details are not available, then that is an indication that there could be RAID controller problems. Proceed to section Physical Assessment of RAID controller components and System set-up menus if the Details option is not available for selection.

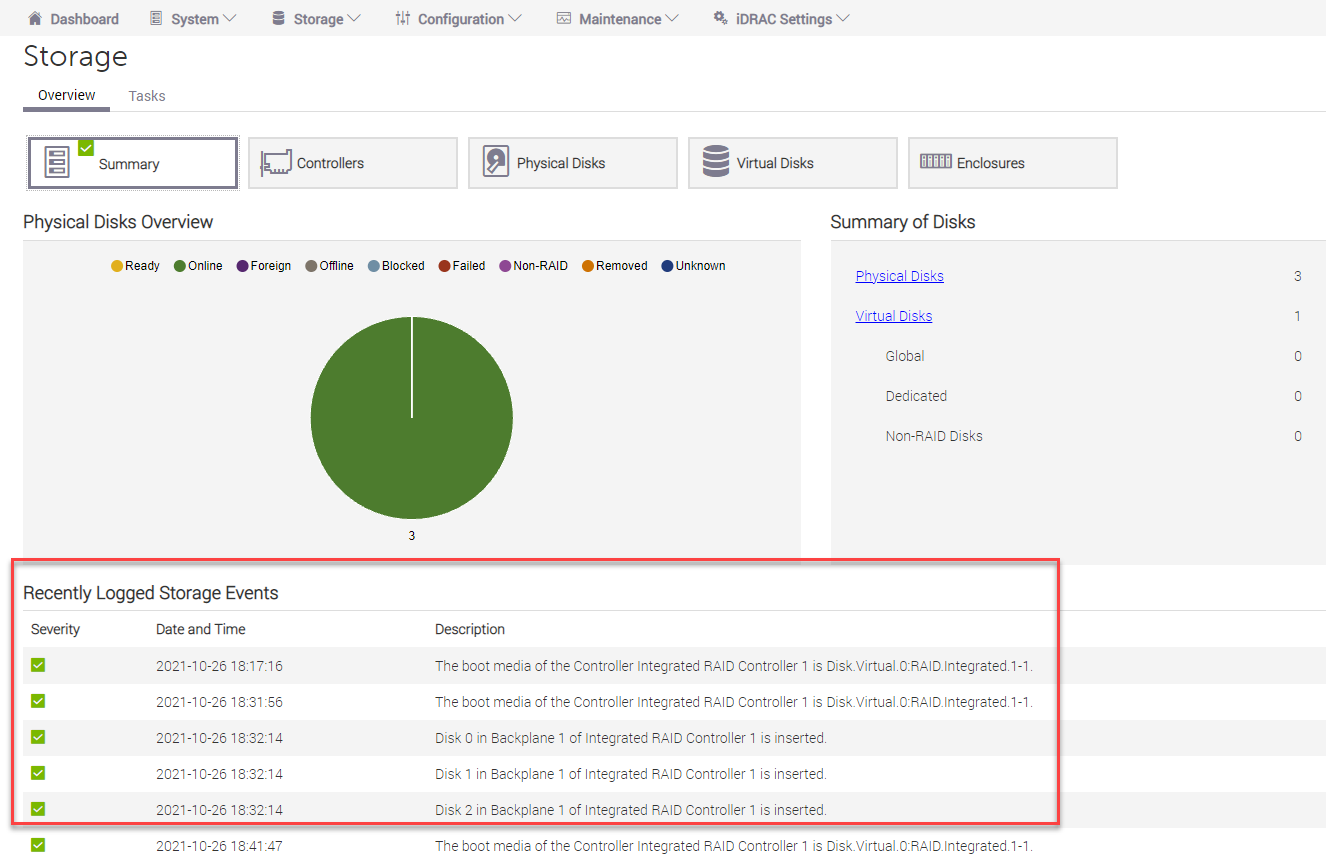

  4. View the Logged Storage Events for any errors reported. Green check marks indicate healthy status. If no Controllers or Enclosures are displayed, then the H730P/H750 is not seen in the Device menus. This could indicate Raid controller problems. Proceed to section Physical Assessment of RAID controller components and System set-up menus if no Controllers or Enclosures tab is available for selection. If the 5 Overview tabs such as Summary, Controllers, Physical Disks, Virtual Disks and Enclosures are available on the Storage page, proceed to the next step.

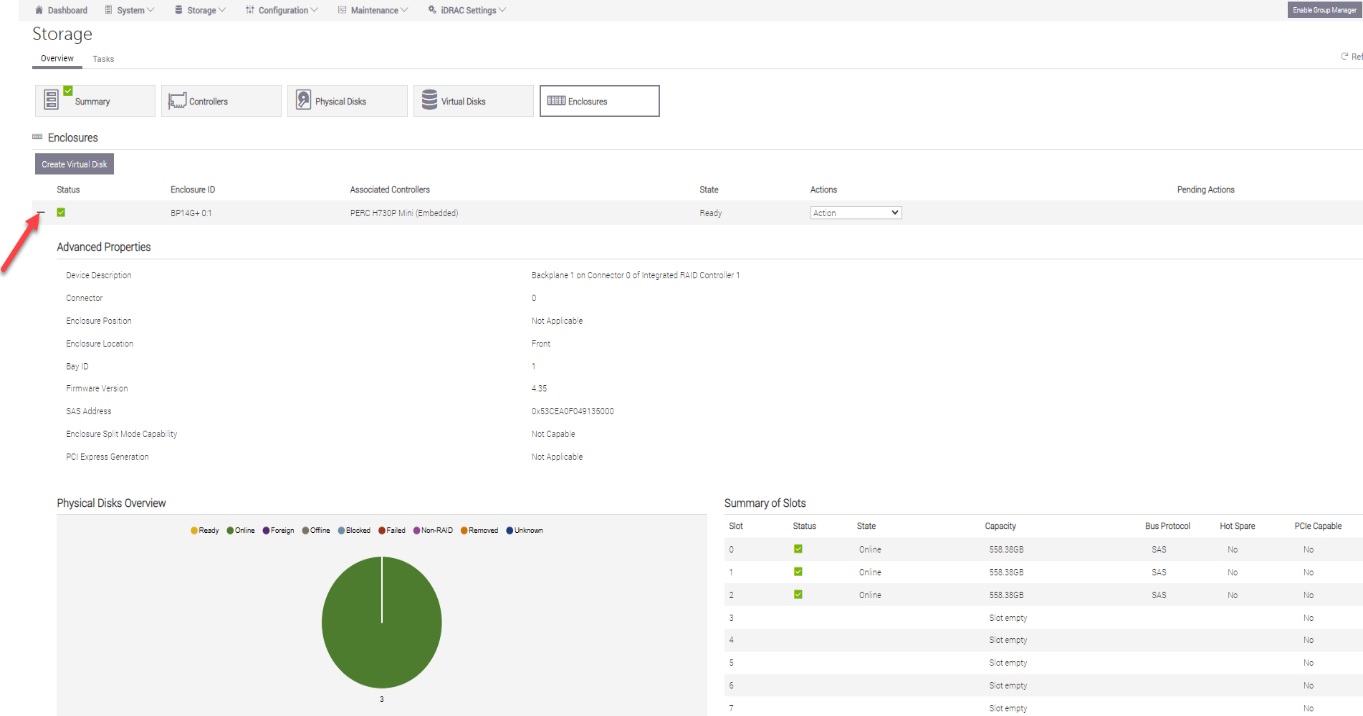

  5. Select each tab across the top of this page reviewing information about the Summary, Controller, Physical Disks, Virtual Disks and Enclosures. If the H730P Controller is suspected, pay special attention to the Controllers and Enclosures tab information. Selecting the + symbol provides detailed information about a component. If the Controller and Enclosures tab show no errors, but there are errors reported under the Physical Disks or Virtual Disks then go to those appropriate sections of this document to repair a Physical Disk(s) (refer to the Hard Disk Drive chapter) or to create a new Virtual Disk (refer to the RAID configuration chapter). If errors are reported under the Controller or Enclosures tab address the errors if enough information is provided. If errors are reported, but more debugging is required go to step 6.

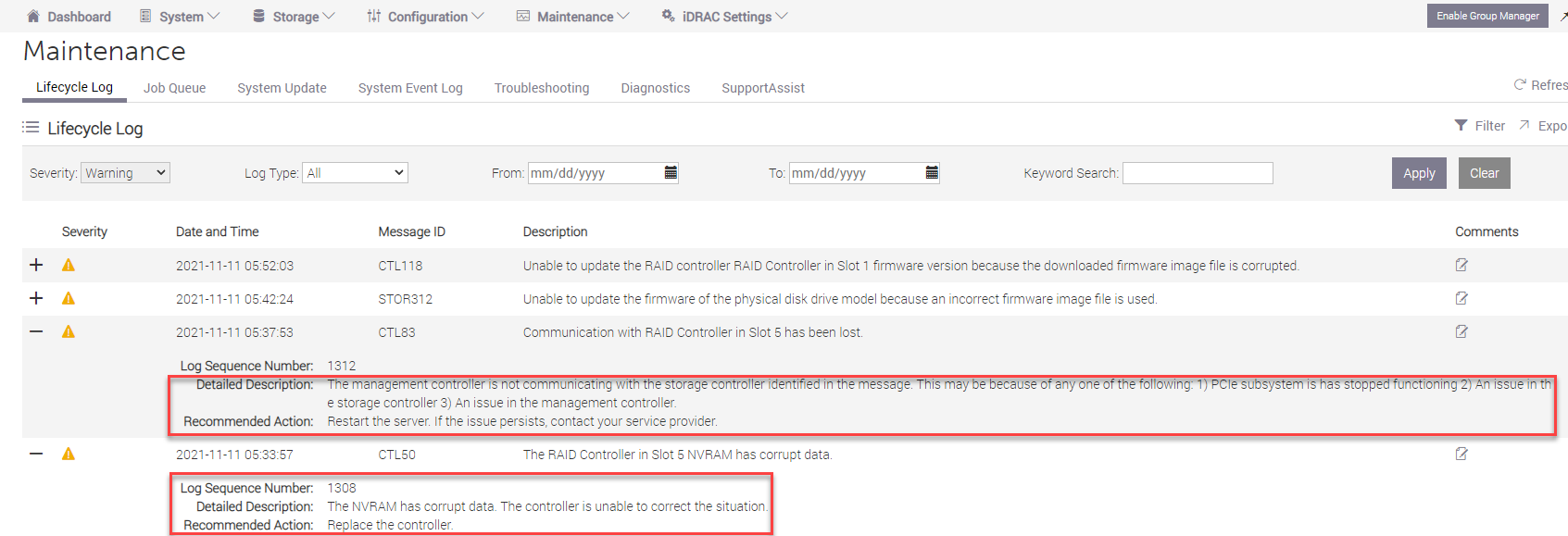

  6. Go to the Maintenance > Lifecycle Log tabs for information about possible logged storage issues. Select the + next to the Severity symbol to get additional detail about an error. Below are examples of errors that may be reported about the RAID controller. If errors are reported follow the Recommended Action. If no errors are reported go to the Dell Embedded System Diagnostics chapter and run applicable Dell system diagnostics or move to section Physical Assessment of RAID controller components and System set-up menus to verify PERC card installation and virtual/physical disk configuration. When in the Diagnostics menu, press Escape to stop the initial start up tests and run the Advanced Options PCIe Bus, PERC Battery, Hard Drive and Backplane Tests. Shutdown the server according to the application instructions and then restart before entering diagnostics mode.
