Example of tracking a single remote device

Last Updated : Jul 06, 2020 |
Prolog information
Metadata
Keywords:
  1. The first step is to configure an RTR which tracks a remote device.
    ADDITIONAL INFORMATION:

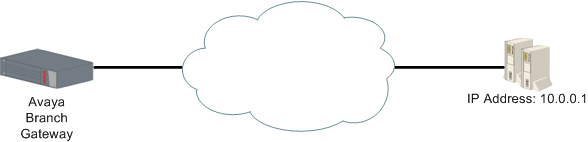

    In this case, RTR 5 is configured to track the device at IP address 10.0.0.1. For example:
    Gxxx-001(config)# rtr 5
    Gxxx-001(config-rtr 5)# type echo protocol ipIcmpEcho 10.0.0.1
    Gxxx-001(config-rtr icmp 5)# wait-interval 2 seconds
    Done!
    Gxxx-001(config-rtr icmp 5)# fail-retries 3
    Done!
    Gxxx-001(config-rtr icmp 5)# success-retries 1
    Done!
    Gxxx-001(config-rtr icmp 5)# exit
    Gxxx-001(config)# rtr-schedule 5 start-time now life forever
  2. The second step is to configure an object tracker which tracks the state of RTR 5.
    ADDITIONAL INFORMATION:
    For example:
    Gxxx-001(config)# track 1 rtr 5
    Gxxx-001(config-track rtr 1)# description track rtr-5
    Done!
    Gxxx-001(config-track rtr 1)# exit
