Systems | System A | PBX Settings | In call functionality

Defines the options shown on the More menu shown on 3700 Series phones when on a call. This can be used to enter the IP Office short codes for functions such as call park, conference and transfer.

Systems | Common | Call Services

Defines the options shown on the 3700 Series phone Call Services menu. This can be used to enter the IP Office short codes for functions such as call pickup, DND on/off.

The items shown in pink indicate areas of the template that contains settings selected to be applied to the device when the template is uploaded to the device. Items shown in blue have been changed during this editing session.

Black: Normal

Dark Blue: Parameter has been edited during the current session.

Purple: The parameter is enabled in the template.

Red: Value not valid.

Turquoise: The value differs from the default value

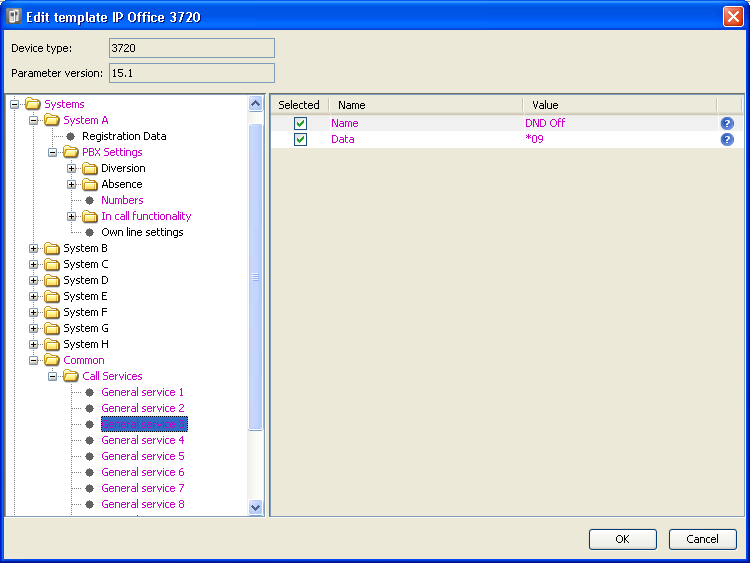

Each item within the template consists of three parts:

• Selected - If selected, the template value will be applied to devices to which the template is uploaded.

• Name - The non-editable name for the template item.

• Value - The value for the template item. This may be a drop-down list from which selection can be made.

Click OK.
