RAM card replacement

Last Updated : Mar 13, 2018 |

About this task

Electrostatic discharge alert

Hold the module only by the edges to avoid damage from static electricity. Do not touch the top or bottom of the circuit board. If possible, wear a wrist strap and use an antistatic bag.

Procedure

  1. Locate the RAM slot (see the figure).
  2. Open the latches on both sides of the RAM slot.

    The RAM card lifts up.

  3. Pull out the 256 RAM card.
  4. Insert the 512 RAM card provided in the kit into the RAM slot, and push in all the way.

    Do not use too much force.

  5. Flatten the RAM card so it is flush with the main board.

    The latches at both sides click shut.

Result

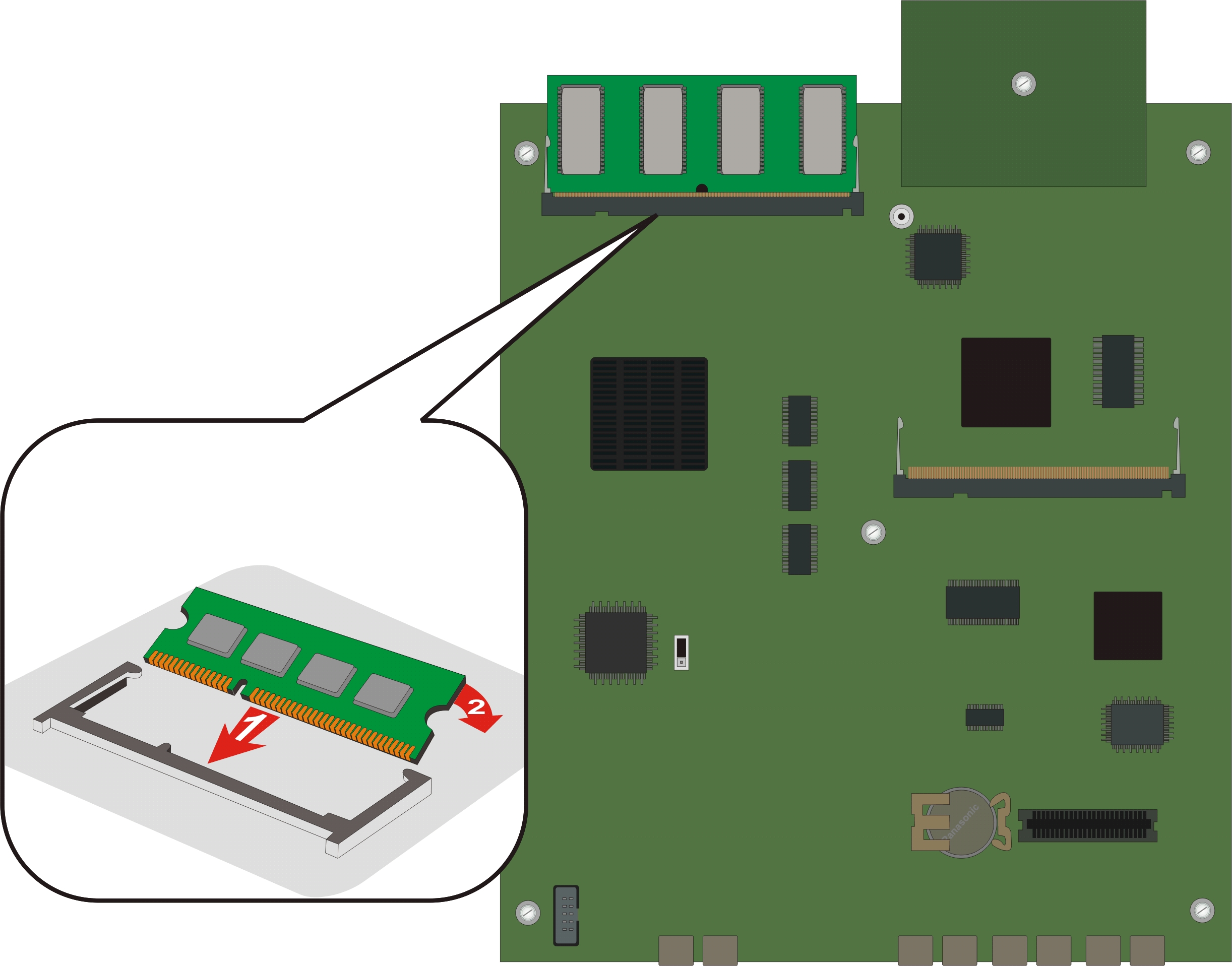

Figure : 1. Replacing the RAM card
Note:

RAM card replacement is applicable only for G430 v1 and G430 v2.
