Typical adjunct power connections

Last Updated : Oct 07, 2020 |

The 400B2 adapter is convenient for connecting local -48 VDC power to a modular plug. See the figure.

See Documentation for Communication Manager, Branch Gateway and Servers CD, 03-300151, for detailed power supply information and installation procedures.

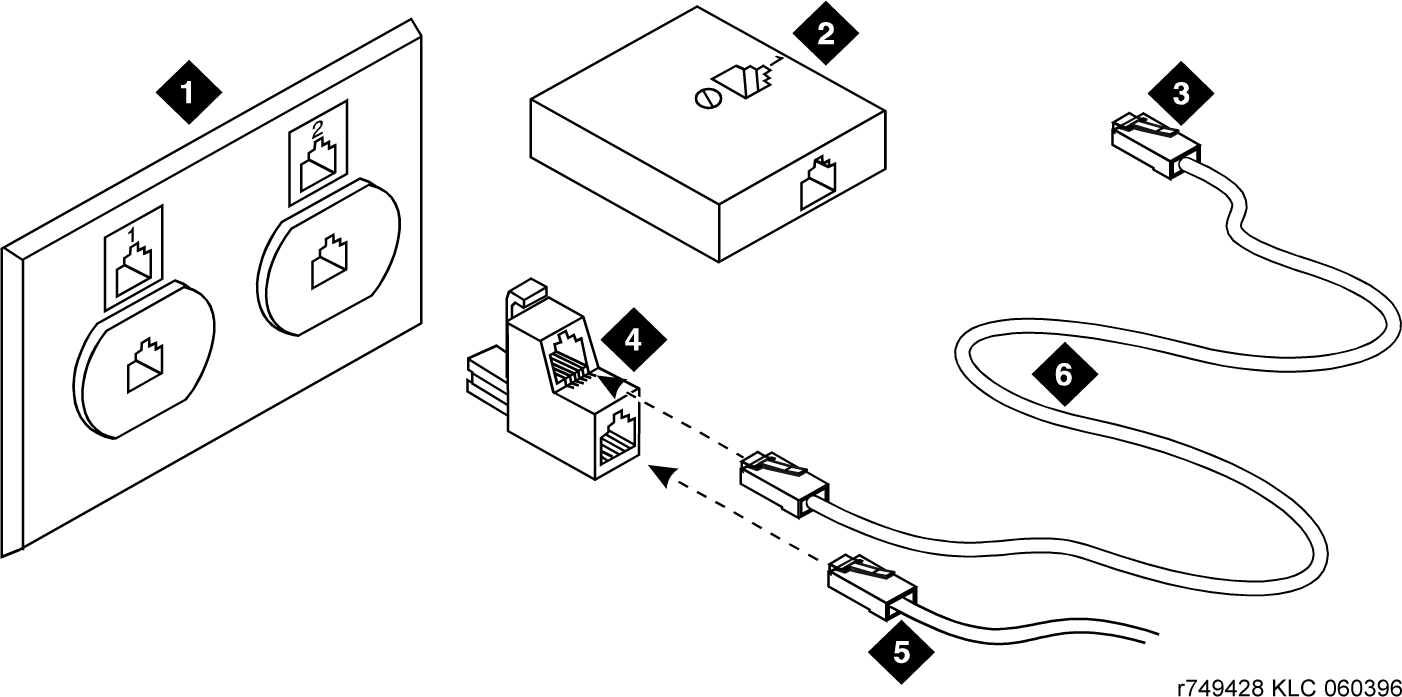

Figure : 1. 400B2 Adapter Connecting to a Modular Plug
Table 1: Figure notes:

  1. Flush-Mounted Information Outlet

  2. Surface-Mounted Information Outlet

  3. To Individual Power Unit

  4. 400B2 Adapter

  5. To Telephone

  6. Destination Service Access Point (DSAP) Power Cord
